5014CH2
ActiveKanebridge
HEX CAP SCREW - HEX HEAD - ZINC
5014CH2
ActiveKanebridge
HEX CAP SCREW - HEX HEAD - ZINC
Description
General part information
5014CH2

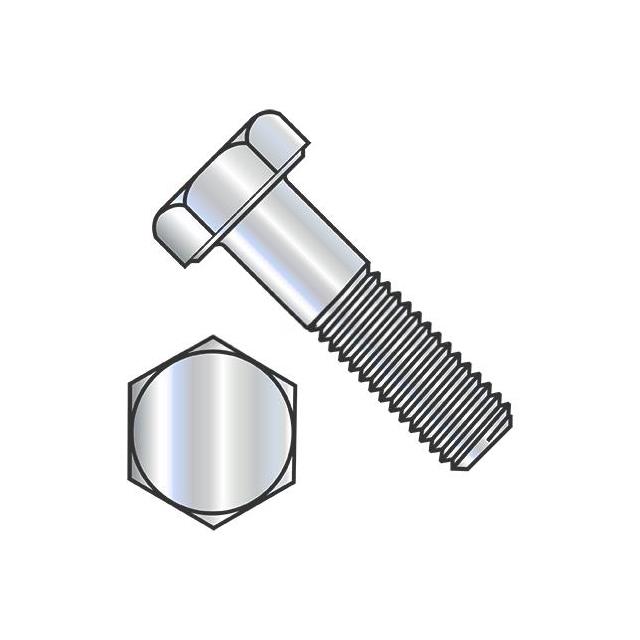

1/2"-13 Hex Head Hex Cap Screw External Hex Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 5014CH2 |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Standard |
| Head Diameter | 0.75 in |
| Head Height | 0.313 in |
| Length - Below Head | 0.875 in |
| Length - Overall | 1.188 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Hex Head |
| Thread Pitch (TPI) | 13 TPI |
| Thread Size (Nominal) | 0.5 in |
| Type | Hex Cap Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
