L-14W6N8SV4E
ObsoleteJohanson Technology Inc.
FIXED IND 6.8NH 700MA 110MOHM SM
L-14W6N8SV4E
ObsoleteJohanson Technology Inc.
FIXED IND 6.8NH 700MA 110MOHM SM
Description
General part information
L-14W6N8SV4E

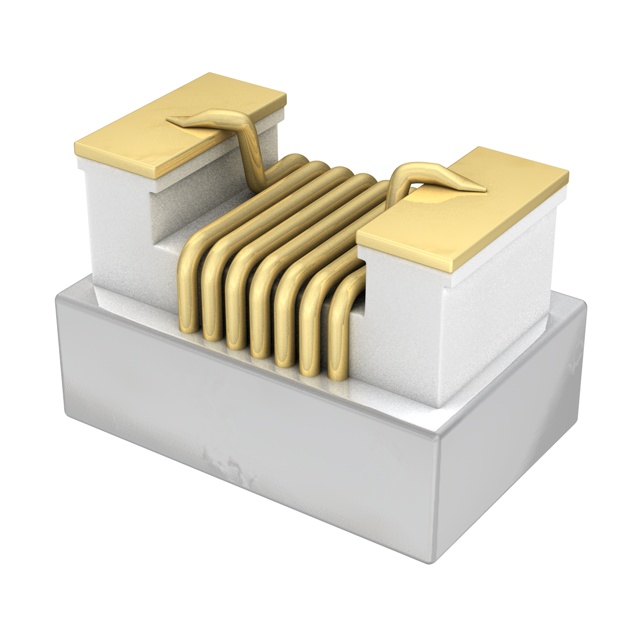

6.8 nH Unshielded Drum Core, Wirewound Inductor 700 mA 110mOhm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | L-14W6N8SV4E |
|---|---|
| Current Rating | 700 mA |
| DC Resistance (DCR) (Max) | 110 mOhm |
| Frequency - Self Resonant | 4.6 GHz |
| Height - Seated (Max) | 0.049 in |
| Inductance | 6.8 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 (1608 Metric) |
| Q | 30 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.041 in |
| Tolerance | 0.3 nH |
| Type | Drum Core, Wirewound |
