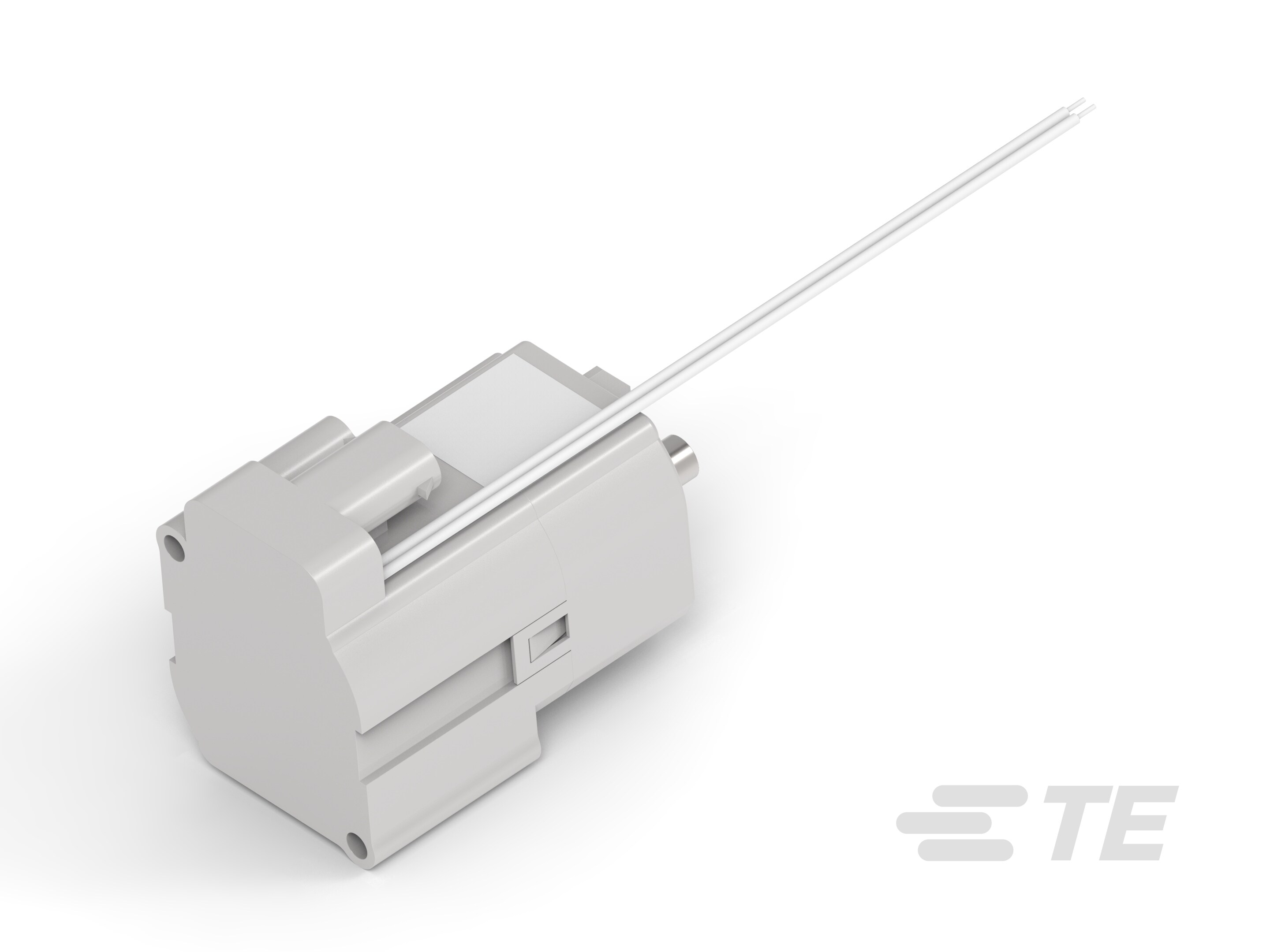

IHV350ADNFA
NRNDTE Connectivity AMP Connectors
RELAY CONTACTOR SPST 350A 24V
IHV350ADNFA
NRNDTE Connectivity AMP Connectors
RELAY CONTACTOR SPST 350A 24V
Description
General part information
IHV350ADNFA
General Purpose Contactor, DC, 1 Form X SPST-NO-DM, 350 A Contact Rating, 24 VDC Coil Voltage, 4 W Coil Power, Panel Mount, Hermetically Sealed, IHV
Technical Specifications
Parameters and characteristics for this part
| Specification | IHV350ADNFA |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | Form, X, 1, SPST-NO, DM |
| Contact Rating (Current) | 350 A |
| Features | Auxiliary Contacts, Hermetically, Sealed, Economizer |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 19 VDC |
| Must Release Voltage | 9 V |
| Operate Time | 25 ms |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 15 ms |
| Switching Voltage DC (Max) | 1800 VDC |
| Termination Style | Quick Connect, Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
