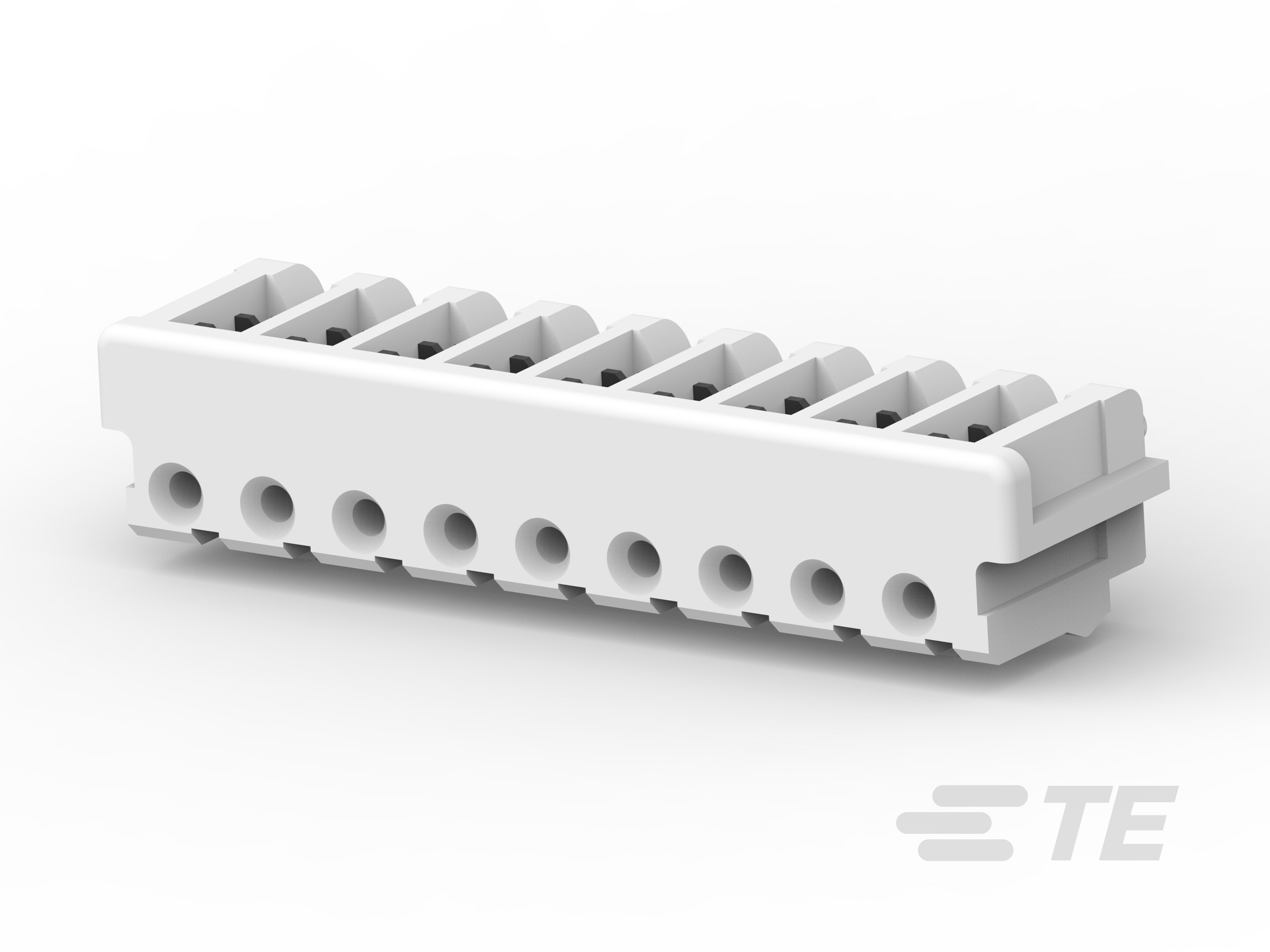

CT CONN MT REC ASSY 9P-173977-9

173977-9

Active
TE Connectivity AMP Connectors

CONN RCPT 9POS IDC 26-28AWG TIN

Find alt
CT CONN MT REC ASSY 9P-173977-9

173977-9

Active
TE Connectivity AMP Connectors

CONN RCPT 9POS IDC 26-28AWG TIN

Find alt

Description

General part information

173977-9

9 Position, Receptacle, Connector Assembly, Insulation Displacement (IDC), Wire-to-Board, 2 mm [.079 in] Centerline, 1 Row, Wire & Cable, AMP CT

Technical Specifications

Parameters and characteristics for this part

Specification173977-9
Cable TerminationIDC
ColorNatural
Connector TypeReceptacle
Contact FinishTin
Contact TypeFemale Socket
Mounting TypeFree Hanging (In-Line)
Number of Positions9
Number of Rows1
Pitch0.079 in
Wire Gauge (AWG) (Max)28 AWG
Wire Gauge (AWG) (Min)26 AWG
Wire TypeDiscrete

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
