NSYTRR24DPE
ActiveSCHNEIDER ELECTRIC
SPRING TERMINAL 2 LEVEL, GROUND,
NSYTRR24DPE
ActiveSCHNEIDER ELECTRIC
SPRING TERMINAL 2 LEVEL, GROUND,
Description
General part information
NSYTRR24DPE

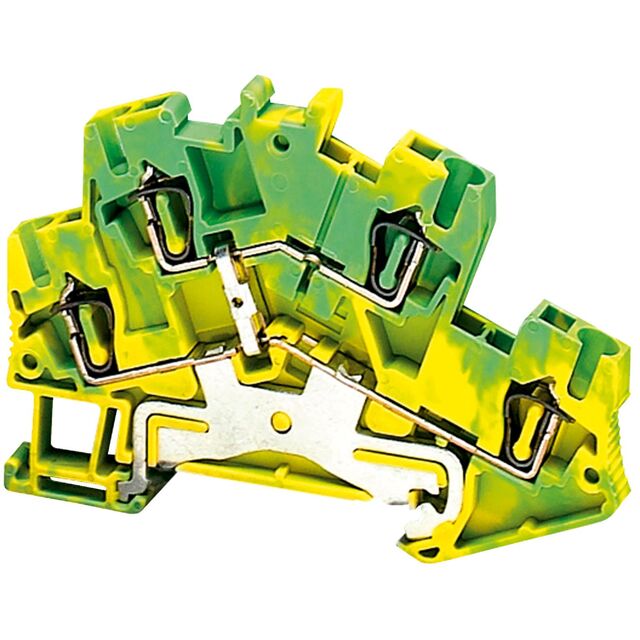

Terminal Block Connector 4 Position Ground, Earth Green, Yellow
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTRR24DPE |
|---|---|
| Color | Yellow, Green |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Levels (Connection) | Connected |
| Number of Positions | 4 |
| Stripping Length | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In, Spring |
| Type | Earth, Ground |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
