TR12U3A
ActiveCyber Power Systems (USA) Inc.
BATT CHARGER WALL MT 5V 3.1A
TR12U3A
ActiveCyber Power Systems (USA) Inc.
BATT CHARGER WALL MT 5V 3.1A
Description
General part information
TR12U3A

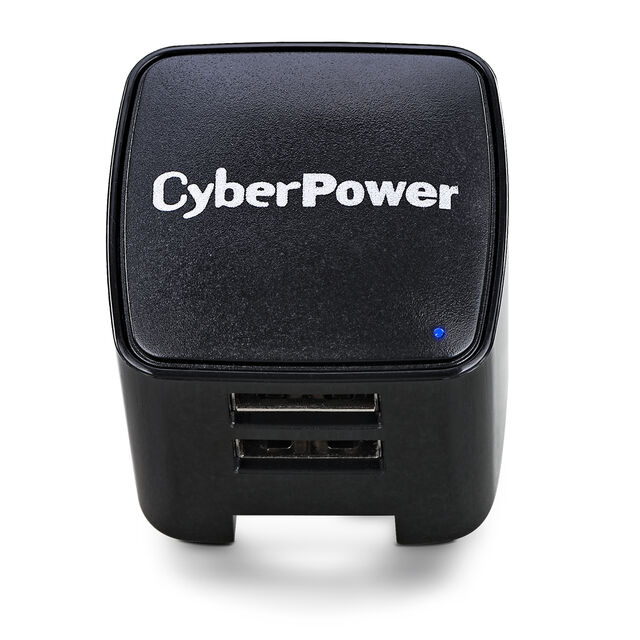

USB Wall Mount Battery Charger 5V 3.1A
Technical Specifications
Parameters and characteristics for this part
| Specification | TR12U3A |
|---|---|
| Approval Agency | FCC, cULus |
| Battery Chemistry | Mobile Devices |
| Charge Current - Max | 3.1 A |
| Mounting Type | Wall Mount |
| Number of Cells | 2 |
| Size / Dimension Height | 1.34 in |
| Size / Dimension Length | 1.38 in |
| Size / Dimension Width | 1.38 in |
| Termination Style | USB A Receptacle (2) |
| Type | USB Wall Mount |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Nominal | 5 V |
