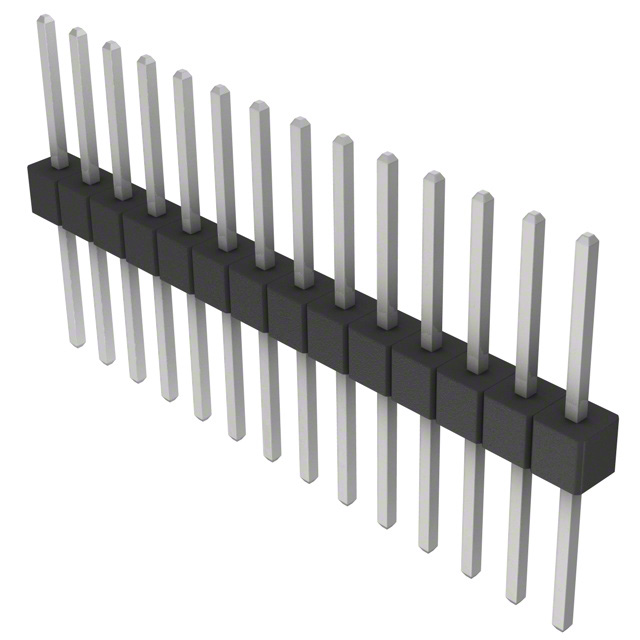

PEC14SFCN

Active

Sullins Connector Solutions

CONN HEADER VERT 14POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC14SFCN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	0.32 in
Contact Length - Post [x]	8.13 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.738 "
Overall Contact Length	18.75 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC14 Series

Part	Contact Shape	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Termination	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Style	Number of Positions Loaded	Insulation Height	Insulation Height	Material Flammability Rating	Contact Type	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions	Mounting Type	Shrouding	Insulation Material	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PEC14SBDN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black	0.4 in	10.16 mm	3 A	2.54 çm	100 çin	1	Solder	0.23 in	5.84 mm	2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	3.56 mm	0.14 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	14	Through Hole Right Angle	Unshrouded	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PEC14SFCN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black	0.32 in	8.13 mm	3 A	2.54 çm	100 çin	1	Solder	0.318 "		2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	2.54 mm	0.1 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	14	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)	8.08 mm	0.738 "	18.75 mm
Sullins Connector Solutions PEC14DAHN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black	0.82 in	20.83 mm	3 A	2.54 çm	100 çin	2	Solder	0.23 in	5.84 mm	2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	2.54 mm	0.1 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	28	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)		1.15 in	29.21 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC14SGBN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black	0.2 in	5.08 mm	3 A	2.54 çm	100 çin	1	Solder	0.318 "		2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	3.56 mm	0.14 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	14	Through Hole Right Angle	Unshrouded	Polybutylene Terephthalate (PBT)	8.08 mm
Sullins Connector Solutions PEC14SBEN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black			3 A	2.54 çm	100 çin	1	Solder	0.23 in	5.84 mm	2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	3.56 mm	0.14 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	14	Through Hole Right Angle	Unshrouded	Polybutylene Terephthalate (PBT)						12.7 mm	0.5 in
Sullins Connector Solutions PEC14SAFN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black			3 A	2.54 çm	100 çin	1	Solder	0.23 in	5.84 mm	2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	2.54 mm	0.1 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	14	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)		0.95 in	24.13 mm			15.75 mm	0.62 in
Sullins Connector Solutions PEC14DABN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black			3 A	2.54 çm	100 çin	2	Solder	0.23 in	5.84 mm	2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	2.54 mm	0.1 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	28	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)		0.56 in	14.22 mm	2.54 mm	0.1 in	5.84 mm	0.23 in
Sullins Connector Solutions PEC14DAAN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black	0.12 in	3.05 mm	3 A	2.54 çm	100 çin	2	Solder	0.23 in	5.84 mm	2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	2.54 mm	0.1 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	28	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)		0.45 "	11.43 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC14DFCN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black	0.32 in	8.13 mm	3 A	2.54 çm	100 çin	2	Solder	0.318 "		2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	2.54 mm	0.1 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	28	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)	8.08 mm	0.738 "	18.75 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC14DAGN	Square	Tin	125 °C	-65 ░C	Phosphor Bronze	Black	0.72 "	18.29 mm	3 A	2.54 çm	100 çin	2	Solder	0.23 in	5.84 mm	2.54 µm	100 µin	Breakaway Header	Board to Board Cable	All	2.54 mm	0.1 in	UL94 V-0	Male Pin	Push-Pull	0.1 in	2.54 mm	28	Through Hole	Unshrouded	Polybutylene Terephthalate (PBT)		1.05 in	26.67 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.29
		10	$ 1.09
		100	$ 0.98
		500	$ 0.80
		1000	$ 0.71
		5000	$ 0.63

Description

General part information

PEC14 Series

Connector Header Through Hole 14 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
