966851-1

Active

TE Connectivity AMP Connectors

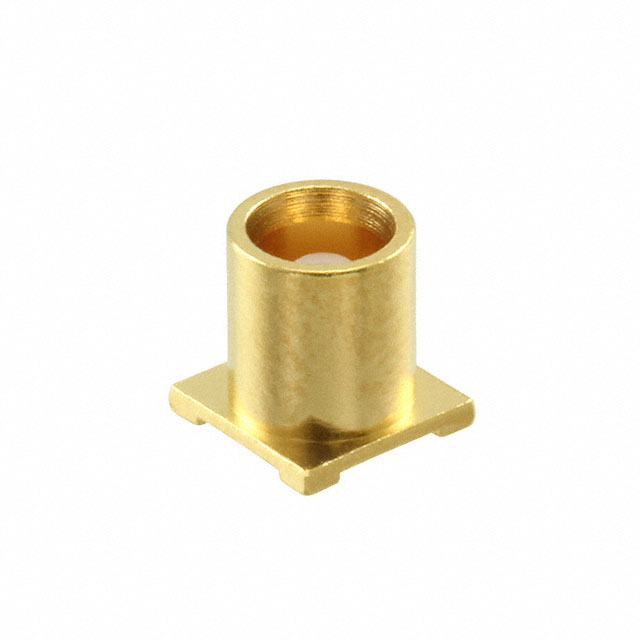

CONN MCX JACK STR 50 OHM SMD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MCX JACK STR 50 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	966851-1

Body Finish	Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN MCX JACK STR 50 OHM SMD

Part	Housing Color	Center Contact Material	Body Finish	Connector Style	Insertion Loss	Number of Ports	Mounting Type	Voltage Rating	Frequency - Max [Max]	Body Material	Shield Termination	Mating Cycles	Dielectric Material	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Center Contact Plating	Impedance
TE Connectivity AMP Connectors 966851-1	Gold	Phosphor Bronze	Gold	MCX	0.1 dB	1	Surface Mount	335 V	6000 MHz	Brass	Solder	500	Polytetrafluoroethylene (PTFE)	Solder	-65 ░C	165 °C	Snap-On	Female Socket, Jack	Gold	50 Ohms

General part information

MCX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
