02560992-000

Active

TE Connectivity Measurement Specialties

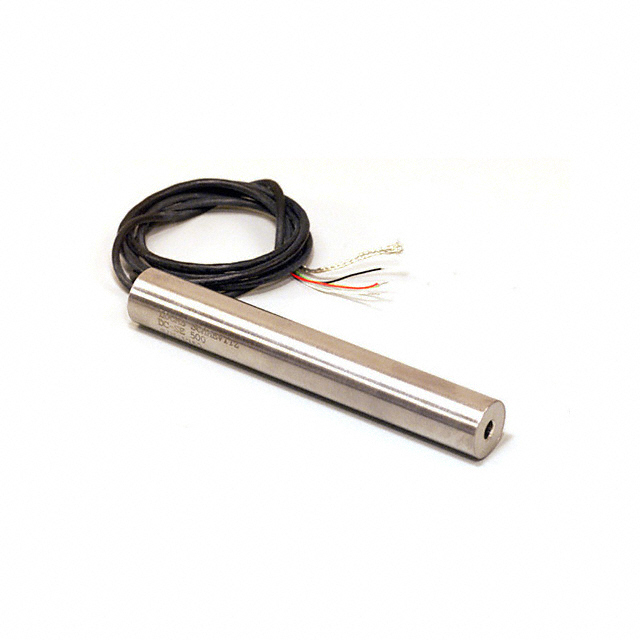

SENSOR LVDT DC-SE 0-12.5MM

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR LVDT DC-SE 0-12.5MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR LVDT DC-SE 0-12.5MM

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	02560992-000	0256 Series

	-	-
Actuator Type	-	Round Shaft
Features	General Purpose	General Purpose, High Reliability
For Measuring	-	Rotary Position
Linear Range	12.5 mm	0.13 - 101.6 mm
Linearity	-	0.25 %
Operating Temperature [Max]	85 °C	70 - 150 °C
Operating Temperature [Min]	-25 °C	-55 - 0 °C
Output	-	Analog Voltage
Output Signal	-	Clockwise Increase
Rotation Angle - Electrical, Mechanical	-	60 °
Size / Dimension	132.1 mm	9.5 - 414.5 mm
Size / Dimension	-	20.3 - 282.4 mm
Size / Dimension	-	254 mm
Size / Dimension	-	142.2 mm
Technology	-	Inductive
Termination Style	-	Wire Leads
Voltage - Supply	-	15 V

GENERAL PURPOSE LVDT HR

Part	Linear Range	Size / Dimension	Features	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Measurement Specialties 02560405-000	0.13 mm	9.5 mm	General Purpose	-55 °C	150 °C
TE Connectivity Measurement Specialties 02560967-001
TE Connectivity Measurement Specialties 02560399-000	101.6 mm	397.3 mm	General Purpose	-55 °C	150 °C
TE Connectivity Measurement Specialties 02560569-000
TE Connectivity Measurement Specialties 02560442-000	6 mm	104.1 mm		0 °C	70 °C
TE Connectivity Measurement Specialties 02560967-000
TE Connectivity Measurement Specialties 02560418-000
TE Connectivity Measurement Specialties 02560443-000
TE Connectivity Measurement Specialties 02560444-000
TE Connectivity Measurement Specialties 02560994-200
