XZCP1041L2
ActiveSCHNEIDER ELECTRIC

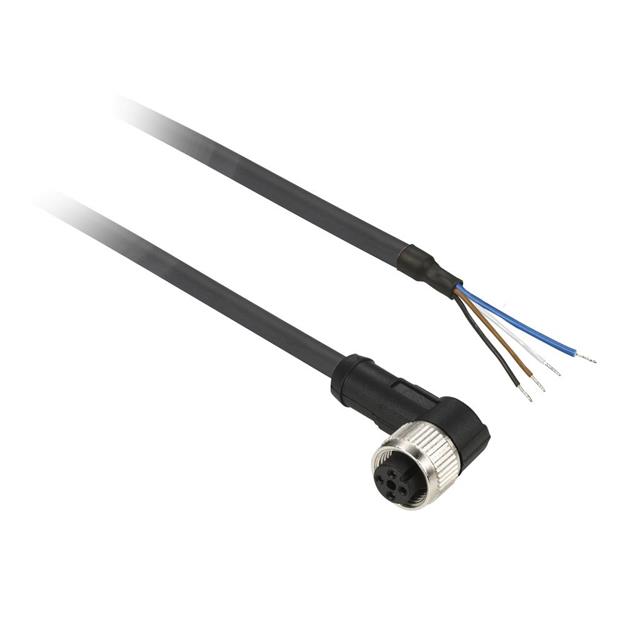

SENSOR CABLE, 90° M8 RECEPTACLE, FREE END, 4 POSITIONS, 2 M, 6.6 FT, XZ SERIES
XZCP1041L2
ActiveSCHNEIDER ELECTRIC
SENSOR CABLE, 90° M8 RECEPTACLE, FREE END, 4 POSITIONS, 2 M, 6.6 FT, XZ SERIES
Description
General part information
XZCP1041L2
Circular Cable Assembly Unshielded 6.56' (2.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | XZCP1041L2 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Right Angle, Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP69K, IP65, IP67 |
| Length | 6.56 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
