W7C82-6PG-300
ActiveConxall/Switchcraft

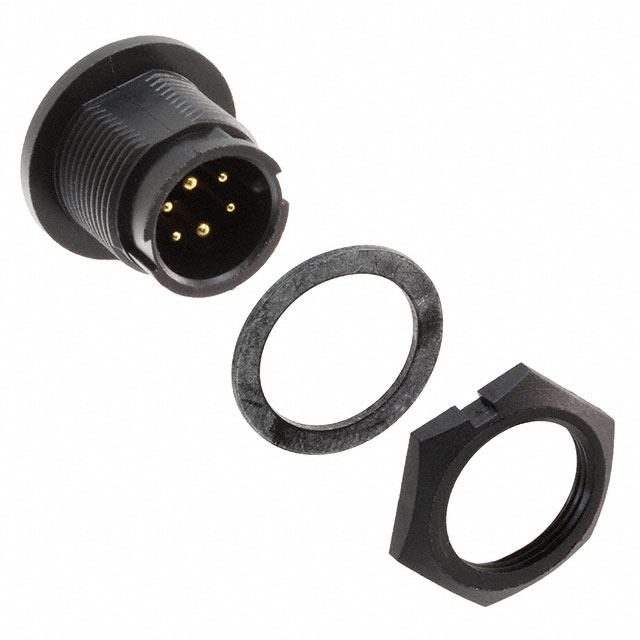

CONN RCPT MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W7C82-6PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W7C82-6PG-300 | W7C82-6 Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | UV Resistant | UV Resistant |
| Ingress Protection | IP69K, IP67 | IP68, IP66, IP67, IP69K |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions [custom] | 4 | 4 - 6 |
| Number of Positions [custom] | 6 | 6 - 8 |
| Number of Positions [custom] | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 125 VDC | 125 - 300 VAC |
W7C82-6 Series
CONN RCPT MALE 8POS SOLDER CUP
| Part | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Mounting Feature | Backshell Material, Plating | Insert Material | Primary Material | Shielding | Color | Contact Finish - Mating | Features | Ingress Protection | Contact Material | Connector Type | Current Rating (Amps) | Applications | Voltage Rating | Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft W7C82-6PG-P-3ES | 8 | 6 | 2 | 85 °C | -40 °C | Bayonet Lock | Bulkhead - Front Side Nut | Thermoplastic | Thermoplastic | Plastic | Unshielded | Black | Gold | UV Resistant | IP66, IP67, IP68 | Copper Alloy | Male Pins, Receptacle | Varies by Wire Gauge | Automotive, Communication Systems, Instrumentation | 300 VAC | Keyed |
Conxall/Switchcraft W7C82-6PG-P-300 | 8 | 6 | 2 | 85 °C | -40 °C | Bayonet Lock | Bulkhead - Front Side Nut | Thermoplastic | Thermoplastic | Plastic | Unshielded | Black | Gold | UV Resistant | IP66, IP67, IP68 | Copper Alloy | Male Pins, Receptacle | Varies by Wire Gauge | Automotive, Communication Systems, Instrumentation | 300 VAC | Keyed |
Conxall/Switchcraft W7C82-6PG-300 | 6 | 4 | 2 | 85 °C | -40 °C | Bayonet Lock | Bulkhead - Front Side Nut | Thermoplastic | Thermoplastic | Plastic | Unshielded | Black | Gold | UV Resistant | IP67, IP69K | Copper Alloy | Male Pins, Receptacle | Varies by Wire Gauge | Automotive, Communication Systems, Instrumentation | 125 VDC | Keyed |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.60 | |
| 10 | $ 10.28 | |||
| 25 | $ 9.89 | |||
| 50 | $ 9.49 | |||
| 100 | $ 8.96 | |||
| 300 | $ 8.17 | |||
| 500 | $ 7.64 | |||
| 1000 | $ 7.01 | |||
Description
General part information
W7C82-6 Series
6 (4 + 2 Power) Position Circular Connector Receptacle, Male Pins Solder Cup
