1-1735413-1
ActiveTE Connectivity AMP Connectors

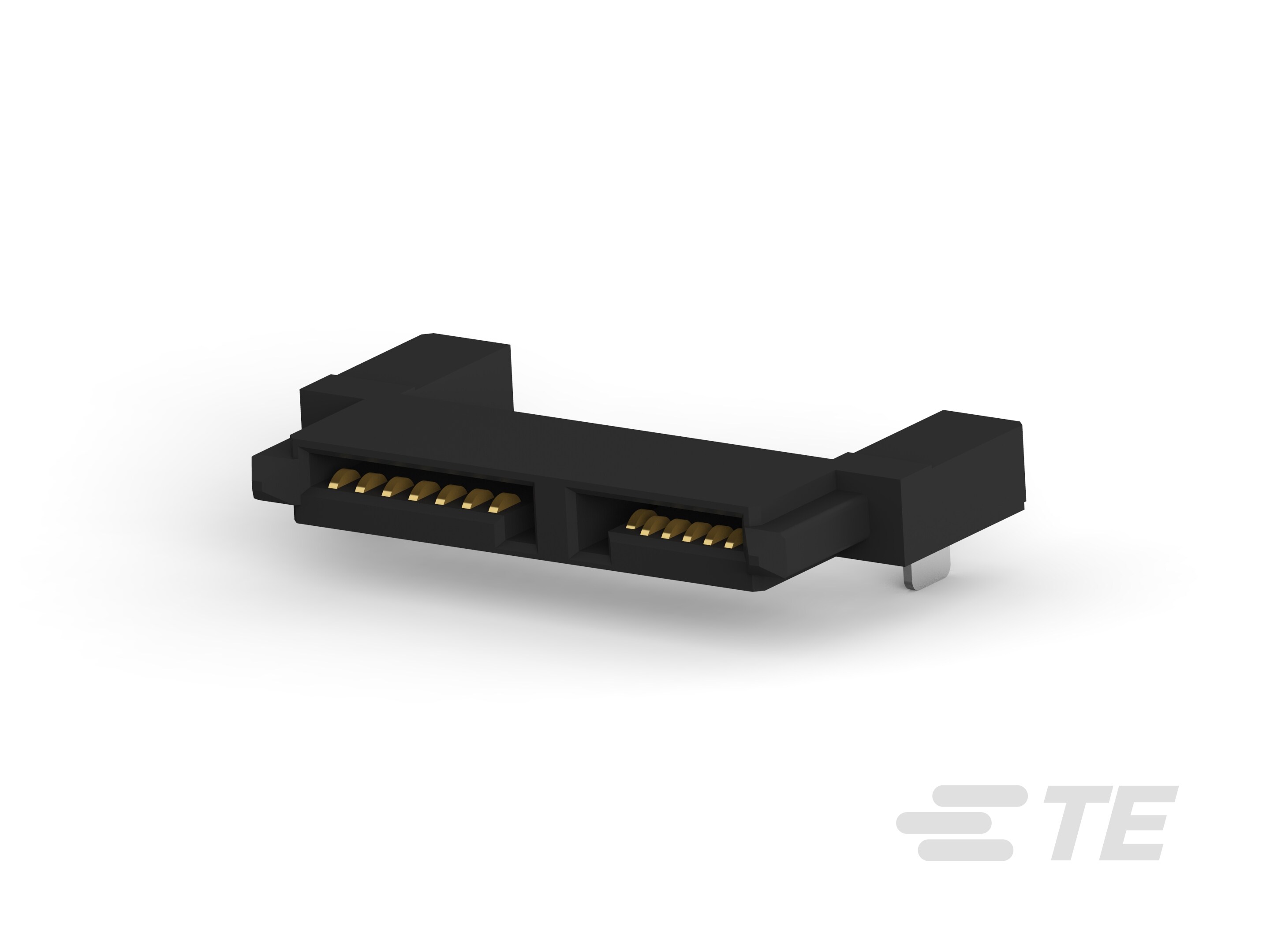

ASEMBLY SLIMLINE SATA RECEPTACLE 7P+6P
1-1735413-1
ActiveTE Connectivity AMP Connectors
ASEMBLY SLIMLINE SATA RECEPTACLE 7P+6P
Description
General part information
1-1735413-1
SATA, Receptacle, Cable-to-Board, 13 Position, 6P + 7P, Slimline Profile, Right Angle, Surface Mount, 1 Row, 2 Port, Top
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1735413-1 |
|---|---|
| Connector Style | Receptacle |
| Connector Type | SATA |
| Contact Finish | Gold |
| Contact Finish Thickness | 2 µin |
| Features | Board Guide, Mating Guide |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 13 |
| Termination | Solder |
