Description
General part information

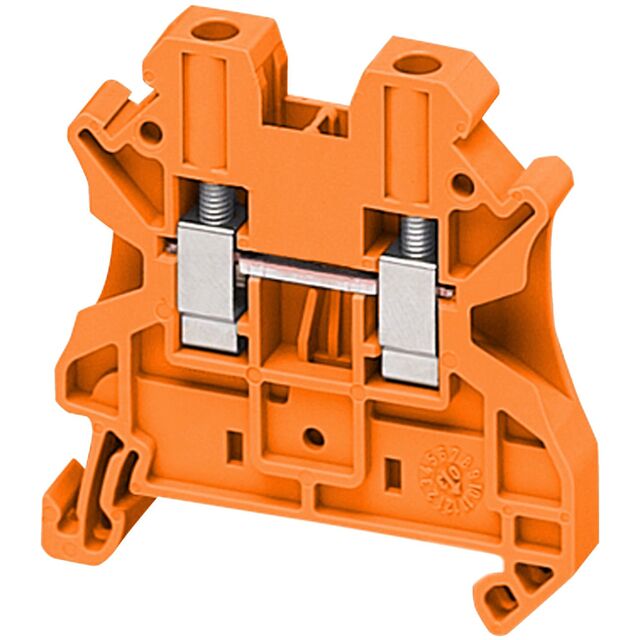

NSYTRV42AR
Terminal Block Connector 2 Position Feed Through Orange
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTRV42AR |
|---|---|
| Color | Orange |
| Current - IEC | 32 A |
| Current - UL | 30 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 9 mm |
| Terminal Width | 6 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 1000 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - mm² (Maximum) | 6 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
