Description
General part information
ROB-10391

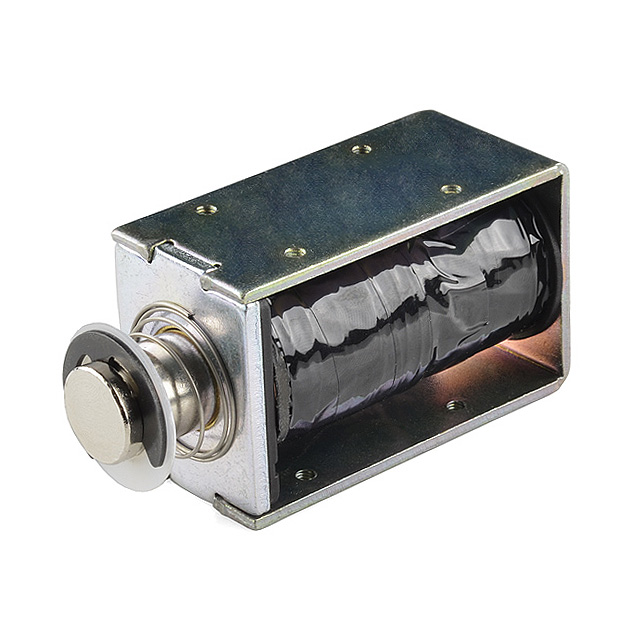

Intermittent Duty Solenoid Open Frame (Push) Type 0.394" (10.00mm) Stroke 36VDC Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ROB-10391 |
|---|---|
| DC Resistance (DCR) | 13 Ohm |
| Diameter - Shaft | 0.197 in |
| Duty Cycle | Intermittent |
| Duty Cycle (string_set) | Intermittent |
| Mounting Type | Chassis Mount |
| Power (Watts) | 99 W |
| Shaft Detail | Round |
| Size / Dimension Height | 1.496 in |
| Size / Dimension Length | 2.53 in |
| Size / Dimension Width | 1.181 in |
| Stroke Length (Linear) | 0.394 in |
| Technology | Electromechanical |
| Termination Style | Wire Leads |
| Type | Open Frame (Push) |
| Voltage - Rated | 36 V |
