BMH1001P02F2A
ActiveSCHNEIDER ELECTRIC
MTR 100MM IP54 NOKEY ENC MULT128
BMH1001P02F2A
ActiveSCHNEIDER ELECTRIC
MTR 100MM IP54 NOKEY ENC MULT128
Description
General part information
BMH1001P02F2A

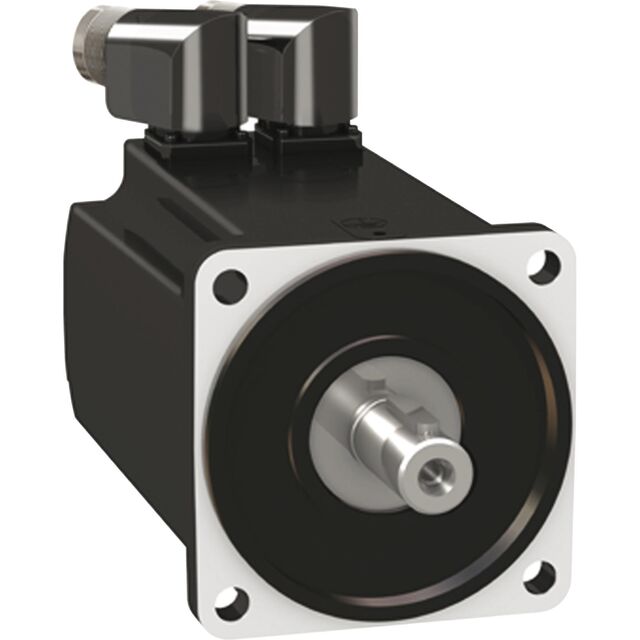

AC Motor Servomotor 6000 RPM 1.3kW 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BMH1001P02F2A |
|---|---|
| Diameter - Shaft | 0.75 in |
| Features | Brake |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.57 in |
| Mounting Hole Spacing | 3.74 in |
| Power - Rated | 1300 W |
| RPM | 6000 RPM |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.937 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 3100 mNm |
| Torque - Rated (oz-in) | 439 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
