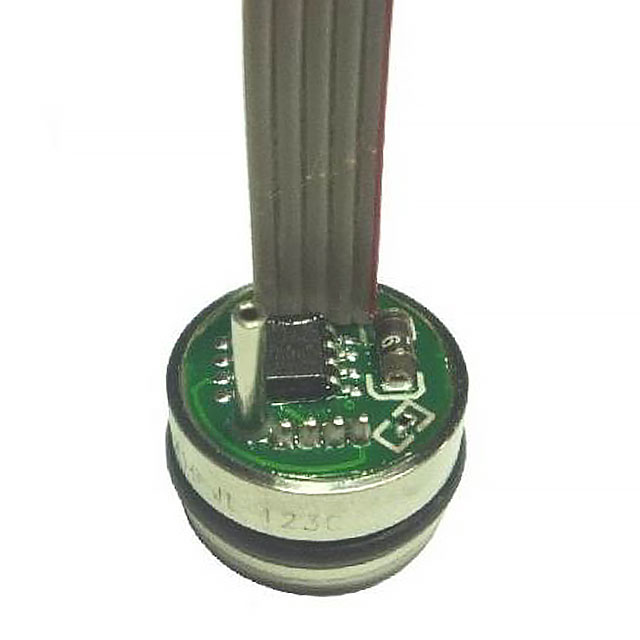

Specification	86BSD150PA-3AIC

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	300 PSI
Operating Pressure	150 PSI
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Bits	14 b
Output Type	I2C
Package / Case	Module
Port Style	No Port
Pressure Type	Absolute
Termination Style	Cable with Connector
Voltage - Supply	3.3 V

MEAS 86 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Operating Pressure	Output Voltage (Max)	Output Voltage (Min)	Pressure Type	Termination Style	Accuracy	Package / Case	Port Style	Applications	Maximum Pressure	Features	Output Type	Output Bits	Port Feature	Mounting Type	Voltage - Supply	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
TE Connectivity AMP Connectors 86BSD300PA-3ASC
TE Connectivity AMP Connectors 86-005G-RT	70 °C	-20 °C	5 PSI	100 mV	0 V	Vented Gauge	Cable with Connector	0.2 %	Cylinder	No Port	Board Mount	15 PSI	Temperature Compensated	Wheatstone Bridge
TE Connectivity AMP Connectors 86BSD300PA-3AIR	125 °C	-40 °C	300 PSI			Absolute	Wire Leads	0.25 %	Module	No Port	Board Mount	600 PSI	Temperature Compensated	I2C	14 b	Cell O-Ring w/Body	Chassis Mount	3.3 V
TE Connectivity AMP Connectors 86-015A-R	125 °C	-40 °C	15 PSI	100 mV	0 V	Absolute	Cable with Connector	0.1 % RH	Cylinder	No Port	Board Mount	45 PSI	Temperature Compensated	Wheatstone Bridge
TE Connectivity AMP Connectors 86-005A-C	70 °C	-20 °C	5 PSI	100 mV	0 V	Absolute	Cable with Connector	0.2 %	Cylinder	No Port	Board Mount	15 PSI	Temperature Compensated	Wheatstone Bridge
TE Connectivity AMP Connectors 86BSD300PG-3ASC
TE Connectivity AMP Connectors 86A3R-000000-100PG	85 °C	-20 °C	100 PSI	4.5 V	0.5 V	Vented Gauge	Cable with Connector	1 %	Module	No Port	Board Mount	300 PSI	Amplified Output Temperature Compensated	Analog Voltage					5.25 V	4.75 V
TE Connectivity AMP Connectors 86BSD015PG-3AIC	125 °C	-40 °C	15 PSI			Vented Gauge	Cable with Connector	0.25 %	Module	No Port	Board Mount	30 PSI	Amplified Output Temperature Compensated	I2C SPI	14 b			3.3 V
TE Connectivity AMP Connectors 86-100G-RT	125 °C	-40 °C	100 PSI	100 mV	0 V	Vented Gauge	Cable with Connector	0.1 % RH	Cylinder	No Port	Board Mount	300 PSI	Temperature Compensated	Wheatstone Bridge
TE Connectivity AMP Connectors 86-030A-C	125 °C	-40 °C	30 PSI	100 mV	0 V	Absolute	Cable with Connector	0.1 % RH	Cylinder	No Port	Board Mount	90 PSI	Temperature Compensated	Wheatstone Bridge
