NTCLE101E3472SB0
ActiveVishay Dale
NTC CU 0.6 LEAD 4K7 SPECIAL TOL BULK E3
NTCLE101E3472SB0
ActiveVishay Dale
NTC CU 0.6 LEAD 4K7 SPECIAL TOL BULK E3
Description
General part information
NTCLE101E3472SB0

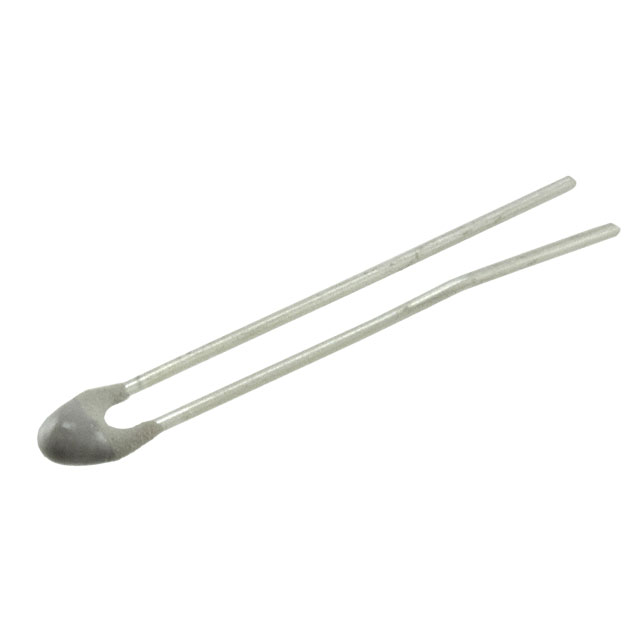

NTC Thermistor 4.7k Bead
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCLE101E3472SB0 |
|---|---|
| B Value (25/85) | 3977 K |
| B Value Tolerance | 1.58 %, 0.75 % |
| Length - Lead Wire | 0.67 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead |
| Power - Max | 250 mW |
| Resistance (Ohms) | 4.7 kOhm |
| Resistance Tolerance (%) | 2.19 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
