1217113-2

Active

TE Connectivity AMP Connectors

187 PL MKIII REC. 22-18AWG TPBR

Find alt

Alpha

1217113-2

Active

TE Connectivity AMP Connectors

187 PL MKIII REC. 22-18AWG TPBR

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Positive Lock 187 Series

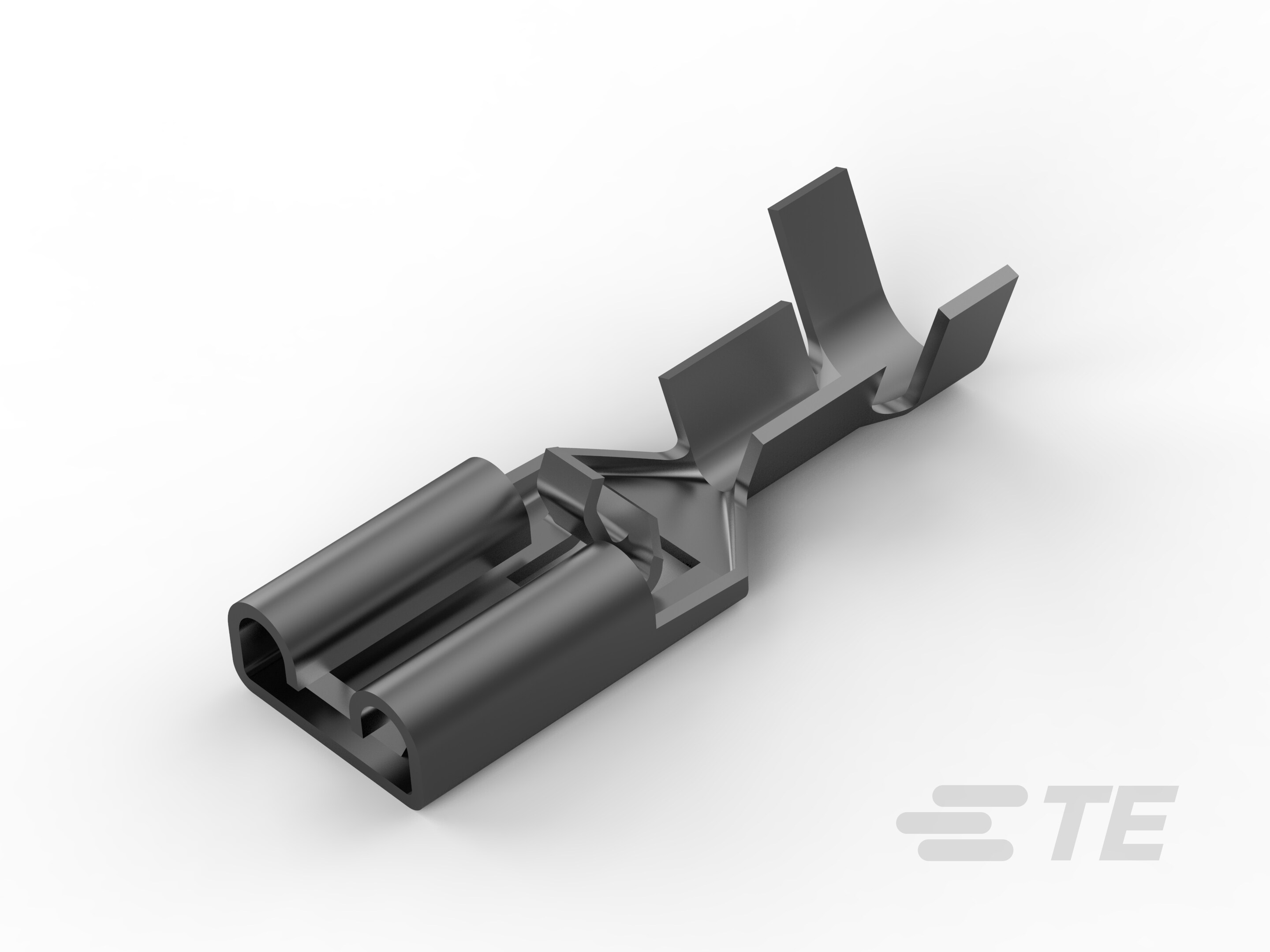

Quick Disconnect Receptacle, 22 – 18 AWG, .32 – .82 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, Positive Lock 187

Technical Specifications

Parameters and characteristics for this part

Specification	1217113-2

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Length - Overall	0.67 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.255 in
Tab Thickness	0.02 in
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

Positive Lock 187 Series

...

Part	Mounting Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Length - Overall	Contact Finish	Gender	Terminal Type	Tab Thickness	Contact Material	Tab Width	Termination	Tab Length	Related Product Length	For Use With/Related Products	Related Product Thickness	Color	Terminal Size	Style	Stacking Direction	Number of Positions	Insulation Diameter (Min)	Insulation Diameter (Max)	Terminal Angle	Note	Material
TE Connectivity AMP Connectors 1318306-1	Free Hanging (In-Line)	18 AWG	14 AWG	Non-Insulated	0.85 in	Tin	Female	Standard	0.032 in	Brass	0.187 in	Crimp	0.236 in
TE Connectivity AMP Connectors 173724-5	Free Hanging (In-Line)	20.5 AWG	14 AWG	Non-Insulated	0.677 in	Tin	Female	Standard	0.02 in	Phosphor Bronze	0.187 in	Crimp	0.287 in
TE Connectivity AMP Connectors 1-172075-1	Free Hanging (In-Line)						Female Receptacle	Disconnect Quick Connect						0.187 in	0.187" (4.75mm) Quick Connects Quick Connects	0.187 in	Natural	0.187 in	Housing	Top to Bottom	3
TE Connectivity AMP Connectors 2390259-1	Free Hanging (In-Line)	16 AWG	14 AWG	Non-Insulated	0.699 in	Tin	Female	Standard	0.031 in	Brass	0.187 in 0.22 in	Crimp	0.197 in									0.118 in	0.169 in
TE Connectivity AMP Connectors 1217096-2	Free Hanging (In-Line)	18 AWG	14 AWG	Non-Insulated	0.67 in	Tin	Female	Standard	0.032 in	Brass	0.187 in	Crimp	0.255 in
TE Connectivity AMP Connectors 2232342-1	Free Hanging (In-Line)			Non-Insulated		Tin	Female	Angled Flag	0.02 in	Brass	0.187 in	Crimp	0.248 in											90 °
TE Connectivity AMP Connectors 3-2299287-1	Free Hanging (In-Line) Right Angle	24 AWG	19.5 AWG	Mating End Insulated		Tin	Female	Angled Flag	0.02 in	Brass	0.187 in	Crimp										0.06 in	0.11 in	90 °
TE Connectivity AMP Connectors 173723-1	Free Hanging (In-Line)	26 AWG	19.5 AWG	Non-Insulated	0.677 in	Tin	Female	Standard	0.02 in	Brass	0.187 in	Crimp	0.287 in									0.051 in	0.142 in
TE Connectivity AMP Connectors 172074-6	Free Hanging (In-Line)						Female Receptacle	Disconnect Quick Connect						0.187 in	0.187" (4.75mm) Quick Connects Quick Connects	0.187 in	Blue	0.187 in	Housing		1
TE Connectivity AMP Connectors 175578-1	Free Hanging (In-Line)						Female Receptacle	Disconnect Quick Connect						0.187 in	0.187" (4.75mm) Quick Connects Quick Connects	0.187 in	Natural	0.187 in	Housing	Top to Bottom	2				Contacts Not Included	Nylon
