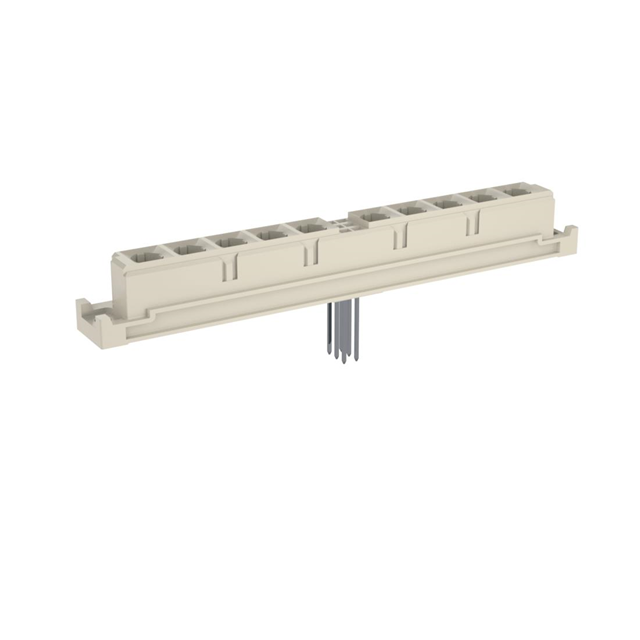

Specification	354152-E

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Level, Class	1
Material - Insulation	Glass Filled, PBT, Polybutylene Terephthalate
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions (Normal)	6
Number of Positions (Power)	10
Number of Positions (Total)	16
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.1 in
Style	M
Termination	Solder
