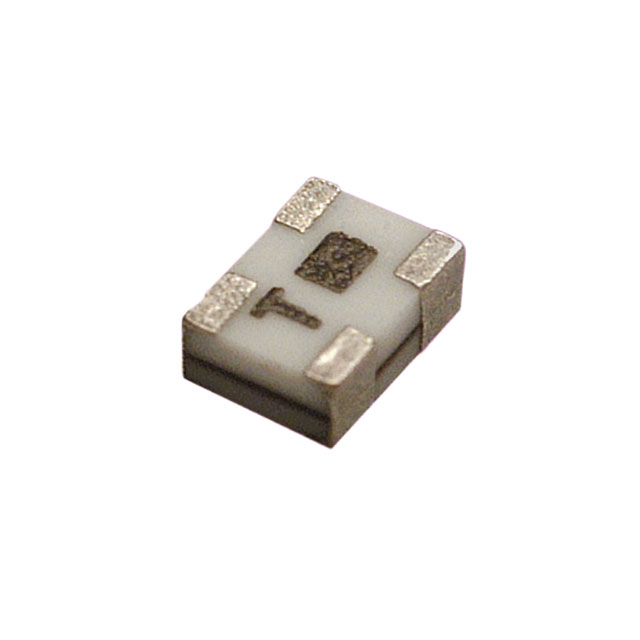

LP0805A1747AWTR
ActiveKYOCERA AVX
RF FILTER LOW PASS 1.748GHZ 0805
LP0805A1747AWTR
ActiveKYOCERA AVX
RF FILTER LOW PASS 1.748GHZ 0805
Description
General part information
LP0805A1747AWTR
1.748GHz Center Frequency Low Pass RF Filter (Radio Frequency) 75MHz Bandwidth 0.3dB 0805 (2012 Metric), 4 PC Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | LP0805A1747AWTR |
|---|---|
| Bandwidth | 75 MHz |
| Filter Type | Low Pass |
| Frequency (Center) | 1.748 GHz |
| Height (Max) | 0.044 in |
| Insertion Loss | 0.3 dB |
| Mounting Type | Surface Mount |
| Package Name | 0805 |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.08 in |
| Size / Dimension Width | 0.061 in |
