B32926C3565M000
ActiveEPCOS - TDK Electronics

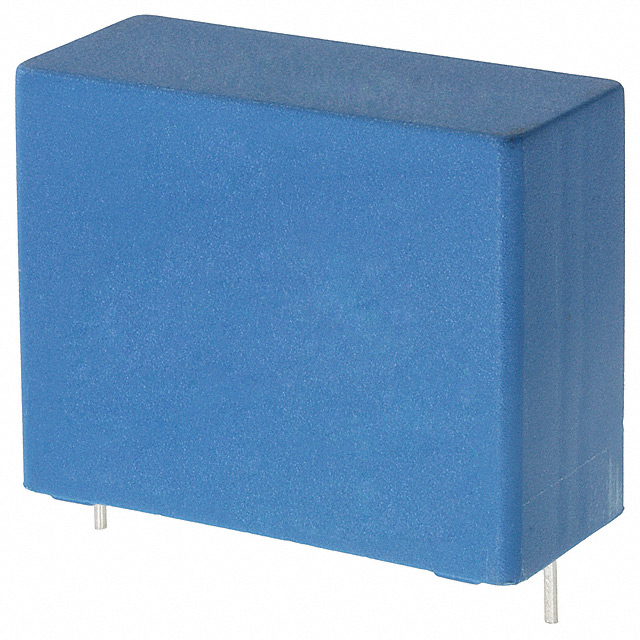

CAP FILM 5.6UF 20% 630VDC RADIAL
B32926C3565M000
ActiveEPCOS - TDK Electronics
CAP FILM 5.6UF 20% 630VDC RADIAL
Description
General part information
B32926C3565M000
5.6 µF Film Capacitor 305V 630V Polypropylene (PP) Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32926C3565M000 |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 5.6 µF |
| Dielectric Material | Polypropylene (PP) |
| Height - Seated (Max) | 1.28 in |
| Lead Spacing | 1.476 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2 |
| Size / Dimension Length | 1.634 in |
| Size / Dimension Width | 0.709 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 305 V |
| Voltage Rating - DC | 630 V |
