1095578
ActiveSICK, Inc.

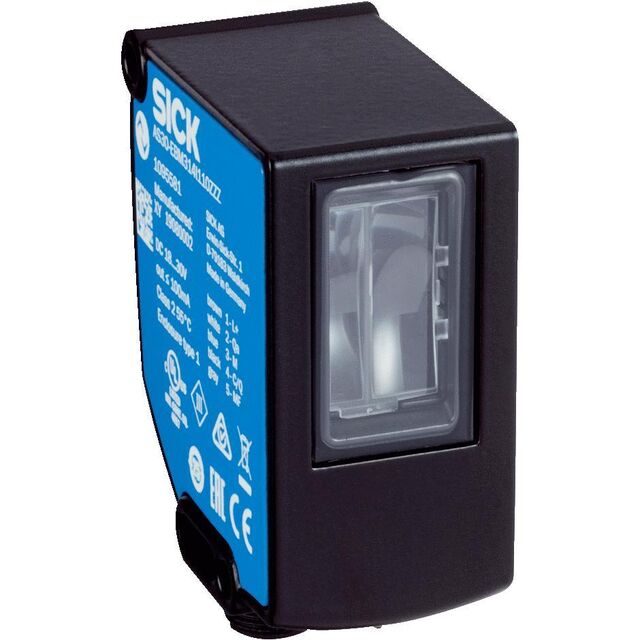

ARRAY SENSORS, AS30, AS30-EBM534
1095578
ActiveSICK, Inc.
ARRAY SENSORS, AS30, AS30-EBM534
Description
General part information
1095578
Proximity, Reflective Optical Sensor 3.937" (100mm) Push-Pull, NPN/PNP
Technical Specifications
Parameters and characteristics for this part
| Specification | 1095578 |
|---|---|
| Adjustment Type | Fixed |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | White |
| Light Source Wavelength Maximum | 700 nm |
| Light Source Wavelength Minimum | 400 nm |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | PNP, NPN, Push-Pull |
| Sensing Distance | 3.937 " |
| Sensing Method | Reflective, Proximity |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 18 VAC |
