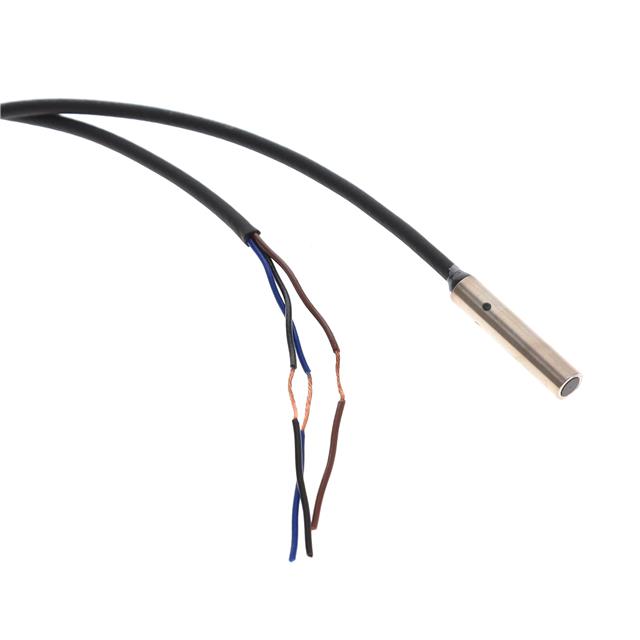

GX-305S-A-N-R
ActivePanasonic Industrial Automation Sales
SENSOR 5.4MM SHLD NPN NO FLEX
GX-305S-A-N-R
ActivePanasonic Industrial Automation Sales
SENSOR 5.4MM SHLD NPN NO FLEX
Description
General part information
GX-305S-A-N-R
Inductive Proximity Sensor 0.028" (0.7mm) IP67 Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | GX-305S-A-N-R |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Cylinder |
| Response Frequency | 4 kHz |
| Sensing Distance | 0.028 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
