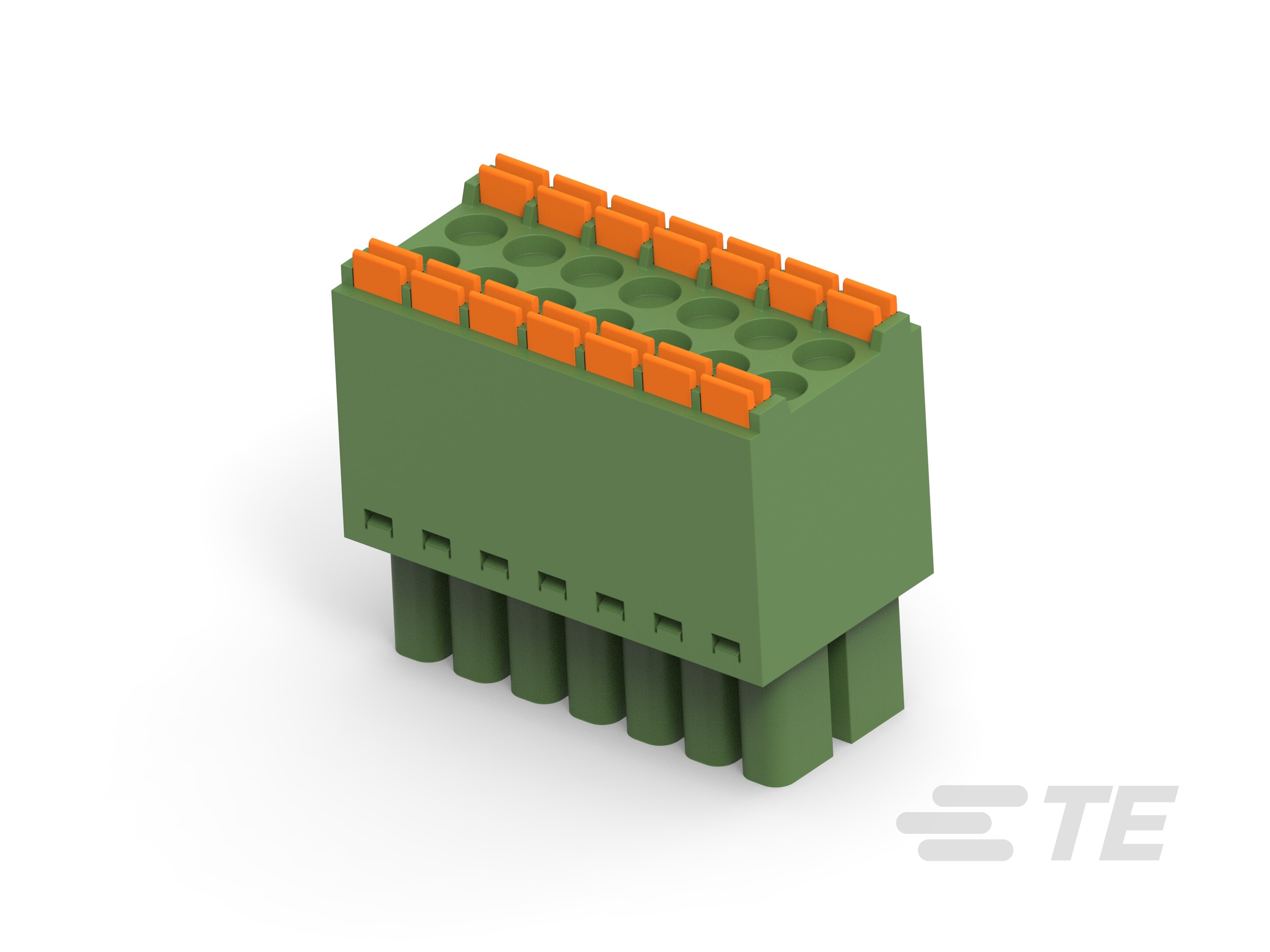

14 POS DR SPRING TB PLUG, PITCH 3.5-1-2385013-4

1-2385013-4

Active
TE Connectivity AMP Connectors

PLUGGABLE TERMINAL BLOCKS 14 POS DR SPRING TB PLUG, PITCH 3.5

Find alt
14 POS DR SPRING TB PLUG, PITCH 3.5-1-2385013-4

1-2385013-4

Active
TE Connectivity AMP Connectors

PLUGGABLE TERMINAL BLOCKS 14 POS DR SPRING TB PLUG, PITCH 3.5

Find alt

Description

General part information

1-2385013-4

14 Position PCB Terminal Block, Plug, Wire-to-Board, 3.5 mm [.138 in] Centerline, 2 Row, 180° Wire Entry Angle, 16 – 24 AWG, .2 – 1.3 mm² Wire

Technical Specifications

Parameters and characteristics for this part

Specification1-2385013-4
ColorGreen
Contact Mating FinishNickel
Current - UL8 A
FeaturesPush Button Actuated
Mounting TypeFree Hanging (In-Line)
Number of Levels2
Number of Positions14
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch0.138 in
Plug Wire Entry Angle90 °
Positions Per Level7
Termination StyleScrewless - Leg Spring, Push-In Spring
TypeFemale Sockets, Plug
Voltage - UL150 V
Wire Gauge or Range - AWG (Max)24 AWG
Wire Gauge or Range - AWG (Min)16 AWG
