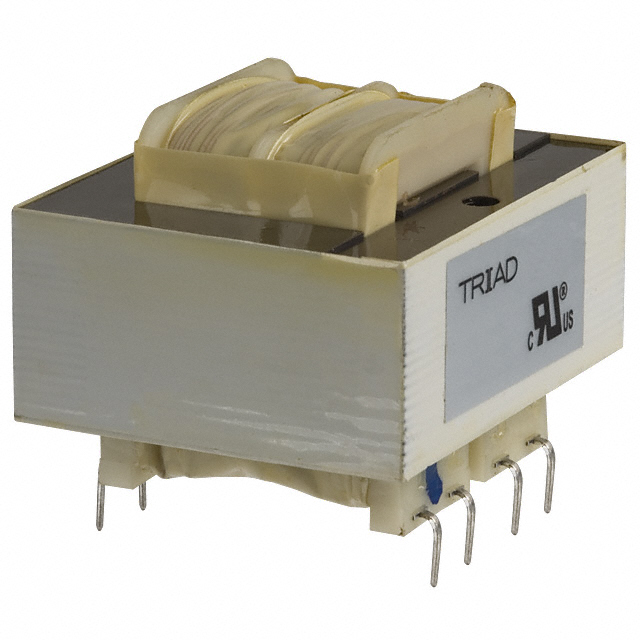

Specification	FS10-3600

Center Tap	No
Current - Output (Max) Parallel	7.2 A
Current - Output (Max) Series	3.6 A
Height - Seated (Max)	39.67 mm
Mounting Type	Through Hole
Power - Max	36 VA
Primary Winding(s)	Dual
Secondary Winding(s)	Dual
Size / Dimension Length	66.68 mm
Size / Dimension Width	55.55 mm
Termination Style	PC Pin
Type	Laminated Core
Voltage - Isolation	2500 Vrms
Voltage - Primary	230V, 115V
Voltage - Secondary (Full Load) (Parallel)	5 V
Voltage - Secondary (Full Load) (Series)	10 V
Weight	1.1 lbs
