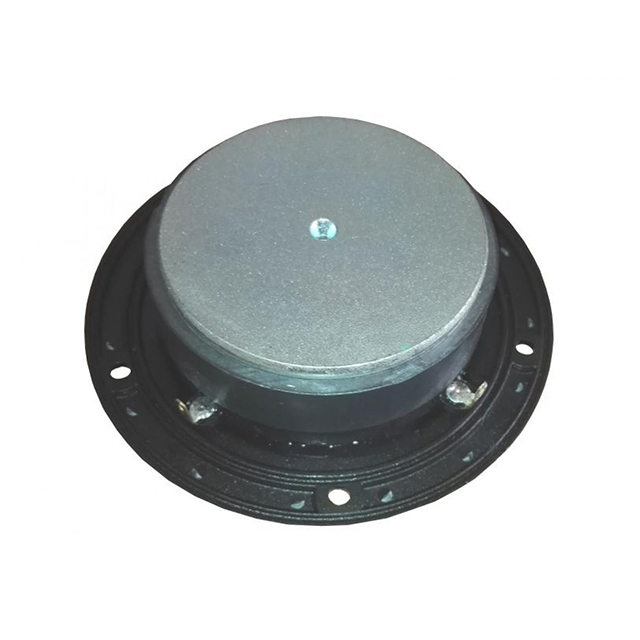

DX25TG49-04
ActivePeerless by Tymphany
SPEAKR 4.04OHM 100W TOP 90.6DB
DX25TG49-04
ActivePeerless by Tymphany
SPEAKR 4.04OHM 100W TOP 90.6DB
Description
General part information
DX25TG49-04
4.04 Ohms Tweeter Speaker 100 W 2.5 kHz ~ 20 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | DX25TG49-04 |
|---|---|
| Efficiency - dBA | 90.6 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 684.57 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 2.5 kHz |
| Impedance | 4.04 Ohms |
| Material - Cone | Cloth |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 100 W |
| Shape | Round |
| Size / Dimension Diameter | 4.094 in |
| Technology | Magnetic |
| Type | Tweeter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
