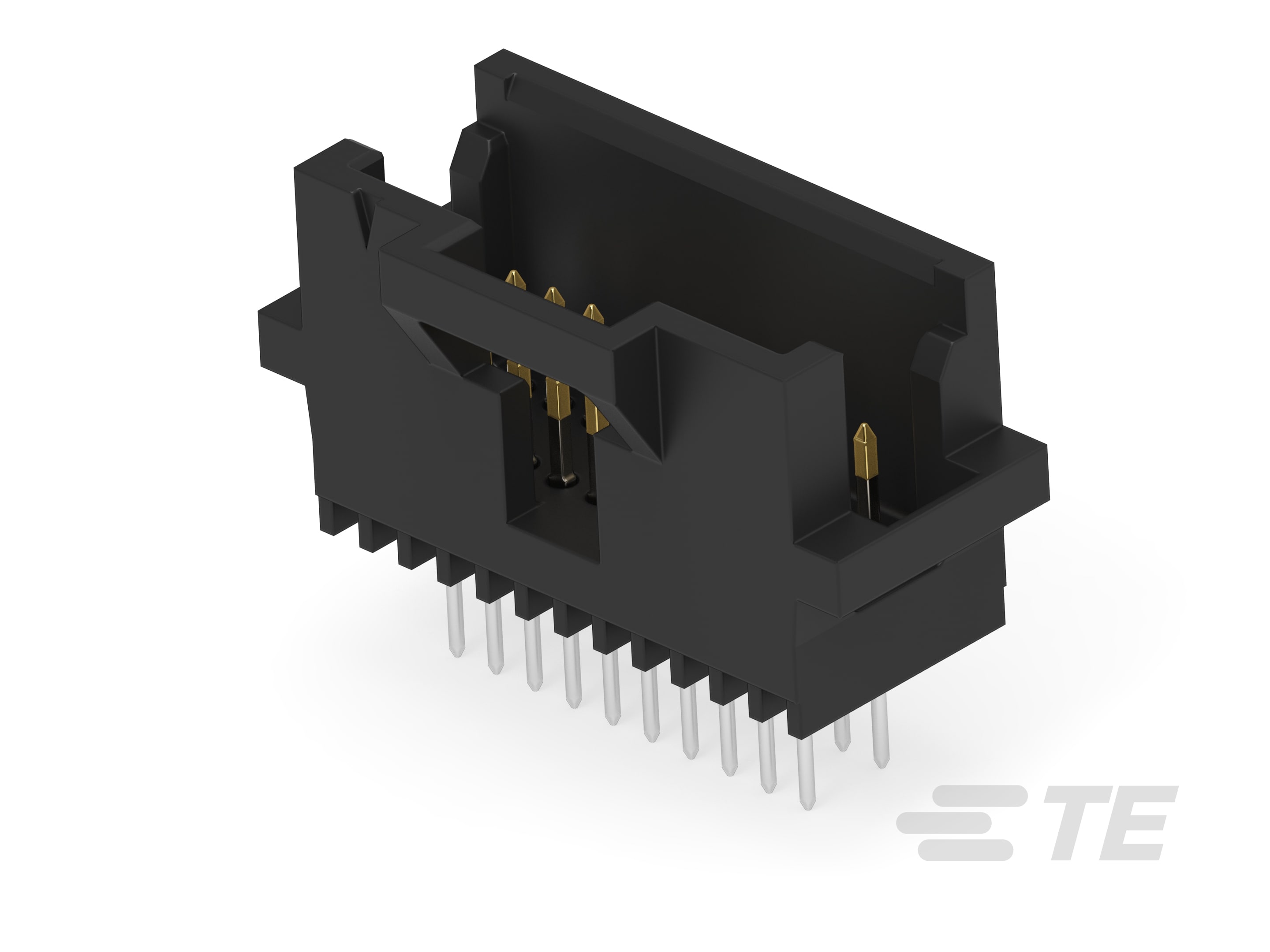

Specification	5-104666-1

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.125 in
Contact Length - Post	0.145 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Color	Black
Insulation Height	0.39 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 2 Wall
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	30 V
