7012-4684
ActiveMcGill Microwave Systems

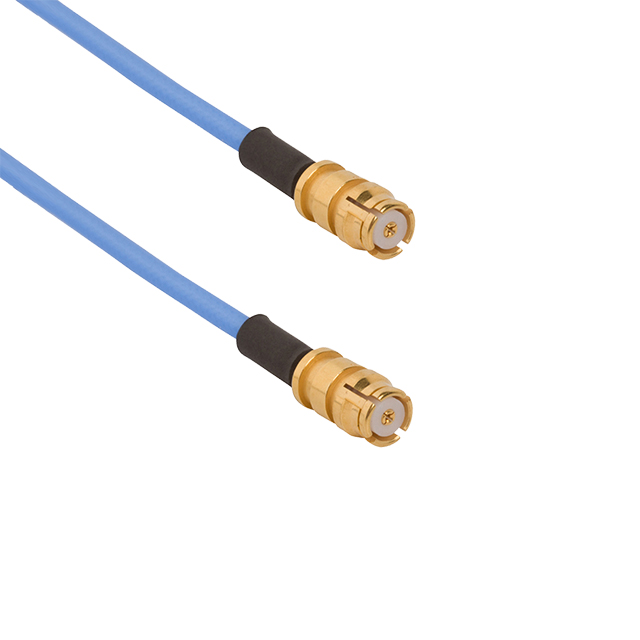

SMP FEMALE TO SMP FEMALE 250MM C
7012-4684
ActiveMcGill Microwave Systems
SMP FEMALE TO SMP FEMALE 250MM C
Description
General part information
7012-4684
SMP FEMALE TO SMP FEMALE 250MM C
Technical Specifications
Parameters and characteristics for this part
| Specification | 7012-4684 |
|---|---|
| 1st Connector | SMP Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.047 " |
| Cable Outer Diameter | 0.047 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.047, 0.047 " |
| Color | Blue |
| Frequency - Max | 40 Gbps |
| Length | 9.843 in |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMP |
