Description
General part information

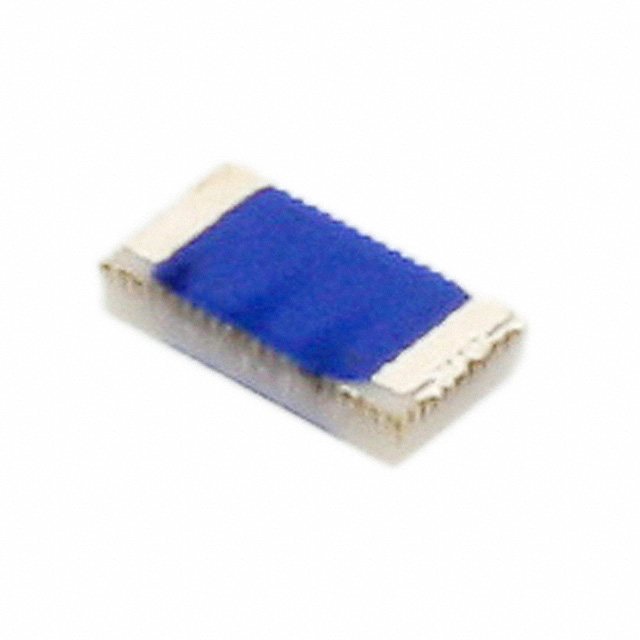

HVF1206T1002FE
10 kOhms ±1% 0.3W Chip Resistor 1206 (3216 Metric) High Voltage, Moisture Resistant, Non-Magnetic Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HVF1206T1002FE |
|---|---|
| Composition | Thick Film |
| Features | Non-Magnetic, High Voltage, Moisture Resistant |
| Height - Seated (Max) | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 300 mW |
| Resistance | 10 kOhm |
| Size / Dimension Length | 0.128 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
