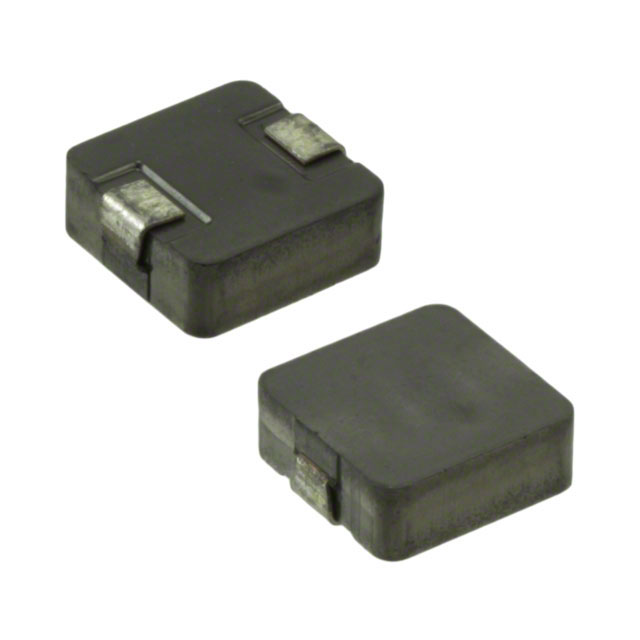

ASPI-1040HI-R16M-T05
ObsoleteAbracon LLC
FIXED IND 160NH 40A 0.65MOHM SMD
ASPI-1040HI-R16M-T05
ObsoleteAbracon LLC
FIXED IND 160NH 40A 0.65MOHM SMD
Description
General part information
ASPI-1040HI-R16M-T05
160 nH Unshielded Molded Inductor 40 A 0.65mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPI-1040HI-R16M-T05 |
|---|---|
| Current - Saturation (Isat) | 75 A |
| Current Rating | 40 A |
| DC Resistance (DCR) (Max) | 0.65 mOhm |
| Height - Seated (Max) | 0.167 in |
| Inductance | 160 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.439 in |
| Size / Dimension Width | 0.394 in |
| Tolerance | 20 % |
| Type | Molded |
