46203LEX
ActiveSwitchcraft Inc.

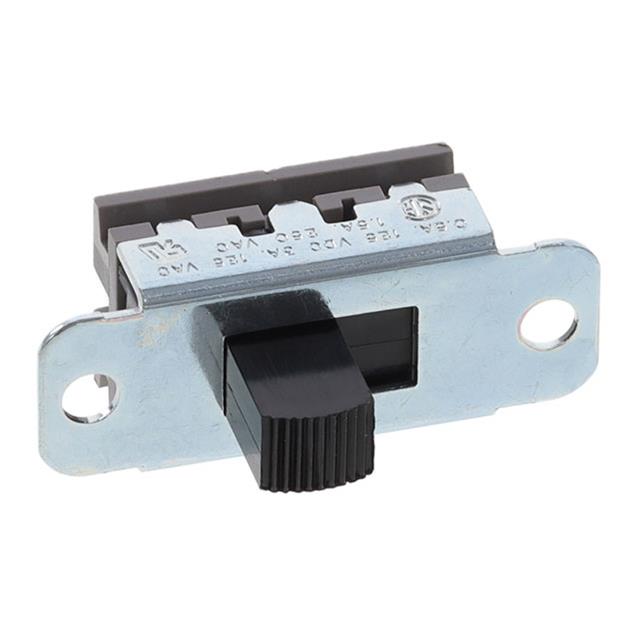

SWITCH SLIDE SPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

46203LEX
ActiveSwitchcraft Inc.
SWITCH SLIDE SPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | 46203LEX | 46203L Series |
---|---|---|
Actuator Length [x] | 8.74 mm | 8.74 mm |
Actuator Material | Thermoplastic | Thermoplastic |
Actuator Type | Standard | Standard |
Circuit | SPDT | SPDT |
Contact Material | Copper Alloy | Copper Alloy |
Contact Timing | Non-Shorting | Non-Shorting |
Current Rating (Amps) | 500 mA, 3 A | 3 - 500 mA |
Operating Temperature [Max] | 70 °C | 70 °C |
Operating Temperature [Min] | -20 C | -20 C |
Switch Function | On-On | On-On |
Switch Travel | 4.78 mm | 4.78 mm |
Termination Style | Solder Lug | Solder Lug |
Voltage Rating - AC | 125 V | 125 V |
Voltage Rating - DC | 125 VDC | 125 VDC |
46203L Series
SWITCH SLIDE SPDT 3A 125V
Part | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Termination Style | Contact Timing | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Actuator Type | Contact Material | Circuit | Actuator Length [x] | Switch Travel | Actuator Material |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 46203LEX | 125 V | 125 VDC | On-On | Solder Lug | Non-Shorting | -20 C | 70 °C | 3 A, 500 mA | Standard | Copper Alloy | SPDT | 8.74 mm | 4.78 mm | Thermoplastic |
Switchcraft Inc. 46203LRX | 125 V | 125 VDC | On-On | Solder Lug | Non-Shorting | -20 C | 70 °C | 3 A, 500 mA | Standard | Copper Alloy | SPDT | 8.74 mm | 4.78 mm | Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 1 | $ 4.40 | |
10 | $ 3.57 | |||
25 | $ 3.28 | |||
100 | $ 2.88 | |||
300 | $ 2.59 | |||
500 | $ 2.47 | |||
1000 | $ 2.31 | |||
2500 | $ 2.10 |
Description
General part information
46203L Series
Slide Switch SPDT Panel Mount
