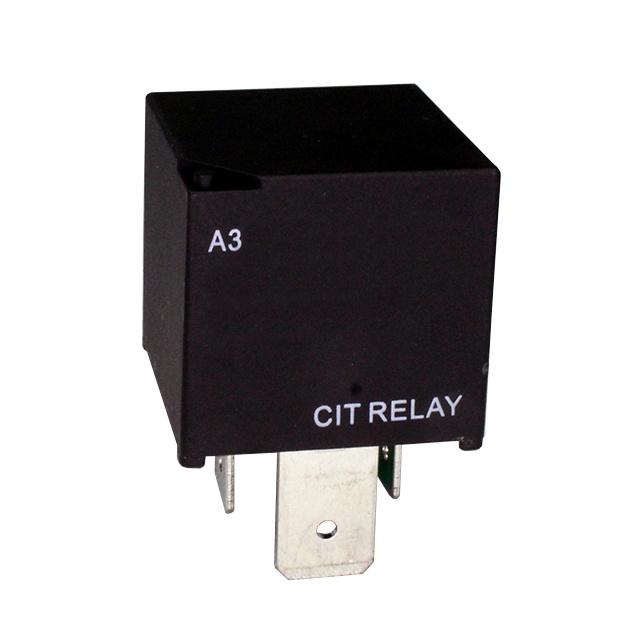

Specification	A31CCQ24VDC1D

Coil Current	0.075 A
Coil Power	1.8 W
Coil Resistance	320 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	C, 1, SPDT, Form
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	60 A
Features	Diode
Mounting Type	Socketable
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 V
Operate Time	7 ms
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Release Time	5 ms
Switching Voltage DC (Max)	75 VDC
Termination Style	Quick Connect - Multiple Sizes
