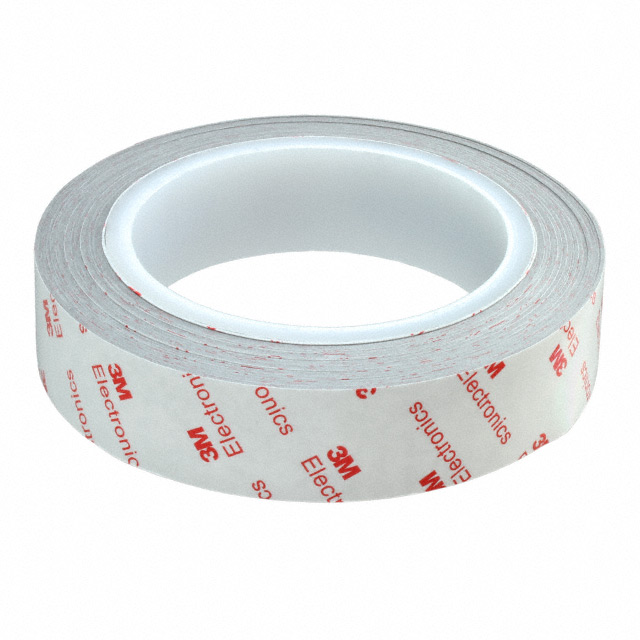

9750-1.5INX25M

Active

3M (TC)

TAPE ADHSV TRNSFR 1 1/2"X27YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ADHSV TRNSFR 1 1/2"X27YDS

Technical Specifications

Parameters and characteristics for this part

Specification	9750-1.5INX25M

Adhesive	Acrylic
Length	25 m
Length	82 ft
Length	27 yds
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Thickness	2 mils
Thickness	0.002 in
Thickness	0.051 mm
Width	1.5 "
Width	38.1 mm
Width	1 1/2

Part	Length	Length	Length	Adhesive	Width [x]	Width [x]	Thickness	Thickness	Thickness	Tape Type	Shelf Life	Shelf Life Start	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Width	Width	Width	Width [y]	Width [y]	Usage
3M (TC) 9750-6INX25M	25 m	82 ft	27 yds	Acrylic	6 in	152.4 mm	2 mils	0.002 in	0.051 mm	Adhesive Transfer	12 Months	Date of Manufacture	70 °F	21 °C
3M (TC) 9750-12INX25M	25 m	82 ft	27 yds	Acrylic	12 in	304.8 mm	2 mils	0.002 in	0.051 mm	Adhesive Transfer	12 Months	Date of Manufacture	70 °F	21 °C
3M (TC) 9750-1.5INX25M	25 m	82 ft	27 yds	Acrylic			2 mils	0.002 in	0.051 mm	Adhesive Transfer	12 Months	Date of Manufacture	70 °F	21 °C	1.5 "	38.1 mm	1 1/2
3M (TC) 9750-2-25	25 m	82 ft	27 yds	Acrylic			2 mils	0.002 in	0.051 mm	Adhesive Transfer	12 Months	Date of Manufacture	70 °F	21 °C				2 "	50.8 mm	Electrically Conductive
3M (TC) 9750-3INX25M	25 m	82 ft	27 yds	Acrylic	3 in	76.2 mm	2 mils	0.002 in	0.051 mm	Adhesive Transfer	12 Months	Date of Manufacture	70 °F	21 °C
3M (TC) 9750-5INX25M	25 m	82 ft	27 yds	Acrylic			2 mils	0.002 in	0.051 mm	Adhesive Transfer	12 Months	Date of Manufacture	70 °F	21 °C				5 in	127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adhesive Transfer Tape Acrylic Adhesive 1.50" (38.10mm) 1 1/2" X 82' (25.0m) 27 yds
