1375795-5

Active

TE Connectivity AMP Connectors

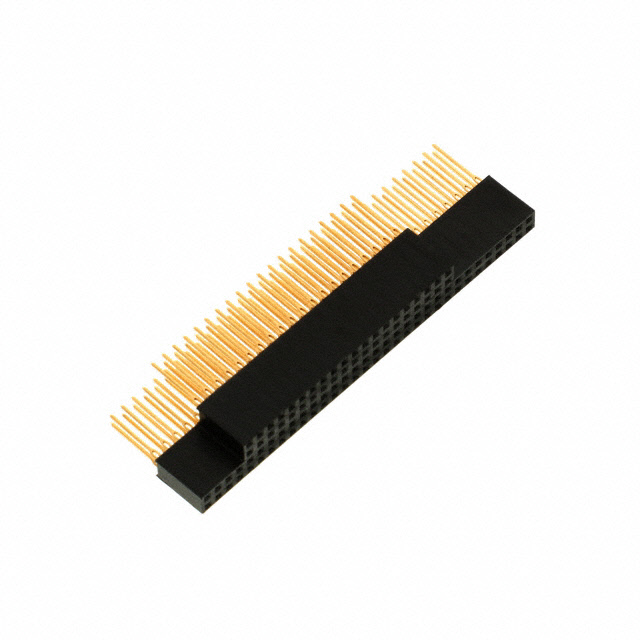

CONN STKTHRU PC/104 104POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN STKTHRU PC/104 104POS PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1375795-5	1375795 Series

Color	Black	Black
Connector Style	PC/104	PC/104
Connector Type	-	Stackthrough, Keyed (PC/104)
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	104	104
Number of Positions Loaded	102	102
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Termination	Press-Fit, Long Post	Press-Fit, Long Post

CONN STKTHRU PC/104 104POS PCB

Part	Mounting Type	Material Flammability Rating	Color	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Pitch [x]	Pitch [x]	Termination	Number of Positions Loaded	Connector Type
TE Connectivity AMP Connectors 1375795-5	Through Hole	UL94 V-0	Black	15 µin	0.38 µm	PC/104	Gold	105 ░C	-55 °C	104	2.54 mm	0.1 in	Press-Fit, Long Post	102
TE Connectivity AMP Connectors 1375795-3	Through Hole	UL94 V-0	Black	15 µin	0.38 µm	PC/104	Gold	105 ░C	-55 °C	104	2.54 mm	0.1 in	Press-Fit, Long Post	102	Stackthrough, Keyed (PC/104)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

104 Connector Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104
