Description
General part information

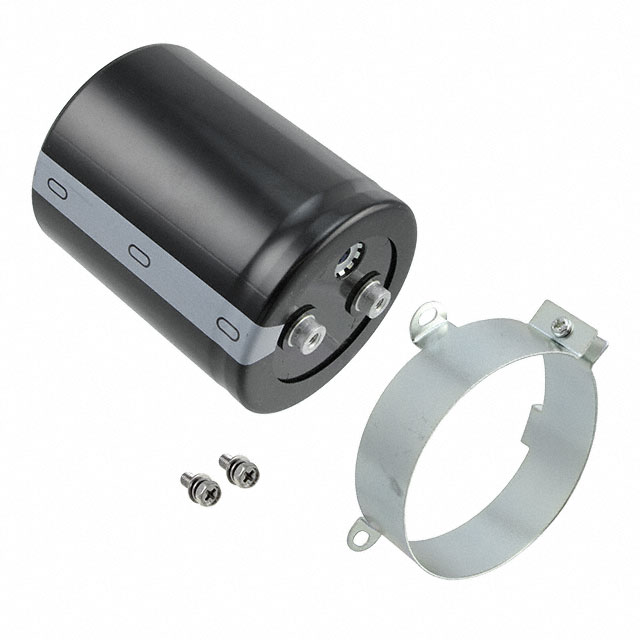

LNU2G472MSEH
4700 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNU2G472MSEH |
|---|---|
| Applications | General Purpose |
| Capacitance | 4700 µF |
| Height - Seated (Max) | 3.858 in |
| Lead Spacing | 1.252 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 15.8 A, 22.12 A |
| Size / Dimension Diameter | 3 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
