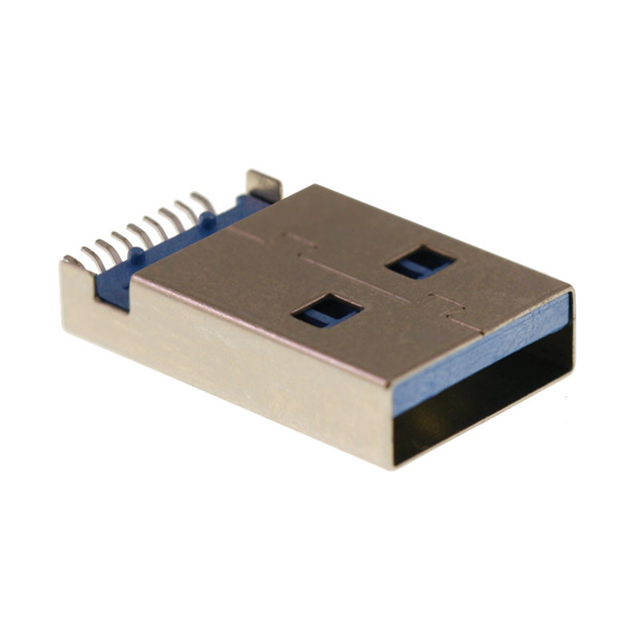

A-USB3 A-LP-SMT1-R
ObsoleteAssmann WSW Components
CONN PLUG USB3.2 TYPEA 9P SMD RA
A-USB3 A-LP-SMT1-R
ObsoleteAssmann WSW Components
CONN PLUG USB3.2 TYPEA 9P SMD RA
Description
General part information
A-USB3 A-LP-SMT1-R
USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Plug Connector 9 Position Surface Mount, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | A-USB3 A-LP-SMT1-R |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating Options | 1A, 0.25A |
| Gender | Plug |
| Insulation Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 cycles |
| Mounting Feature | Horizontal |
| Mounting Type | Right Angle, Surface Mount |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shell/Shielding Material | Steel (SPCC) |
| Shielding | Shielded |
| Specifications | Superspeed (USB 3.0), USB 3.1 Gen 1, USB 3.2 Gen 1 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
