A6RV-161RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6RV-161RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.84
		10	$ 6.24
		48	$ 5.68
		144	$ 4.90
		288	$ 4.46
		528	$ 4.13
		1008	$ 3.83
		2544	$ 3.68

Description

General part information

A6R Series

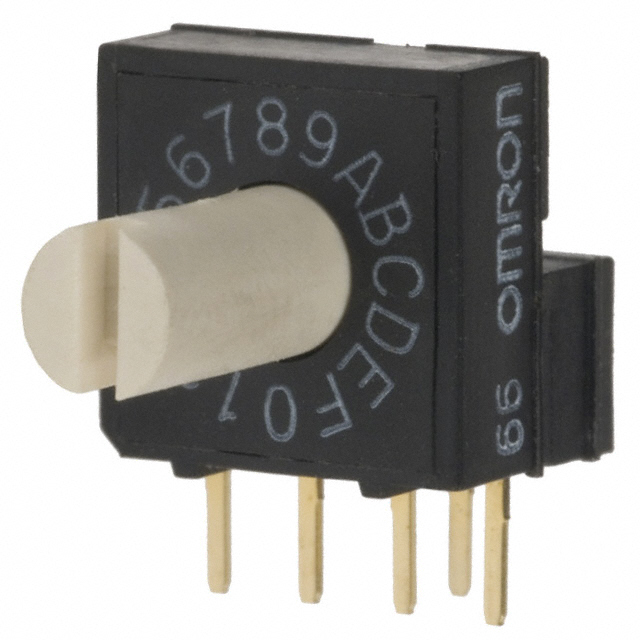

Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary with Shaft Actuator 25mA 24VDC

Documents

Technical documentation and resources

Datasheet

How to Read Date Codes

Related Document

Specification	A6RV-161RS	A6R Series

Actuator Level	Raised	Flush, Recessed, Raised
Actuator Type	Rotary with Shaft	Rotary for Tool, Rotary with Shaft
Circuit	Hexadecimal	BCD, Hexadecimal
Current Rating (Amps)	25 mA	25 mA
Electrical Life	5000 Steps	5000 Steps
Features	Sealed	Sealed
Height Above Board	9.9 mm	4.5 - 12 mm
Height Above Board	0.39 in	0.177 - 0.472 in
Height Above Board	-	0.465 "
Height Above Board	-	11.8 mm
Length [x]	0.386 "	0.386 "
Length [x]	9.8 mm	9.8 mm
Mounting Type	Through Hole, Right Angle	Through Hole, Surface Mount, Through Hole, Right Angle
Number of Positions	16	16
Number of Positions	-	10
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin, Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	False	False

Part

Voltage Rating

Termination Style

Number of Positions

Operating Temperature [Min]

Operating Temperature [Max]

Height Above Board

Electrical Life

Actuator Level

Washable

Circuit

Pitch [x]

Pitch

Pitch [x]

Length [x]

Current Rating (Amps)

Actuator Type

Features

Mounting Type

Number of Positions

Height Above Board [z]

Omron Electronics Inc-EMC Div

A6R-101RF

24 VDC

PC Pin

-25 °C

80 C

0.177 in

4.5 mm

5000 Steps

Flush, Recessed

BCD

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary for Tool

Sealed

Through Hole

Omron Electronics Inc-EMC Div

A6RS-161RF

24 VDC

Gull Wing

-25 °C

80 C

0.185 in

4.7 mm

5000 Steps

Flush, Recessed

Hexadecimal

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary for Tool

Surface Mount

Omron Electronics Inc-EMC Div

A6R-101RS

24 VDC

PC Pin

-25 °C

80 C

5000 Steps

Raised

BCD

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary with Shaft

Sealed

Through Hole

0.465 "

11.8 mm

Omron Electronics Inc-EMC Div

A6R-162RF

24 VDC

PC Pin

-25 °C

80 C

0.177 in

4.5 mm

5000 Steps

Flush, Recessed

Hexadecimal

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary for Tool

Sealed

Through Hole

Omron Electronics Inc-EMC Div

A6RS-162RF-P

24 VDC

Gull Wing

-25 °C

80 C

0.185 in

4.7 mm

5000 Steps

Flush, Recessed

Hexadecimal

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary for Tool

Surface Mount

Omron Electronics Inc-EMC Div

A6R-161RS

24 VDC

PC Pin

-25 °C

80 C

5000 Steps

Raised

Hexadecimal

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary with Shaft

Sealed

Through Hole

0.465 "

11.8 mm

Omron Electronics Inc-EMC Div

A6RS-161RF-P

24 VDC

Gull Wing

-25 °C

80 C

0.185 in

4.7 mm

5000 Steps

Flush, Recessed

Hexadecimal

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary for Tool

Surface Mount

Omron Electronics Inc-EMC Div

A6RV-102RF

24 VDC

PC Pin

-25 °C

80 C

0.39 in

9.9 mm

5000 Steps

Flush, Recessed

BCD

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary for Tool

Sealed

Through Hole, Right Angle

Omron Electronics Inc-EMC Div

A6RV-162RF

24 VDC

PC Pin

-25 °C

80 C

0.39 in

9.9 mm

5000 Steps

Flush, Recessed

Hexadecimal

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary for Tool

Sealed

Through Hole, Right Angle

Omron Electronics Inc-EMC Div

A6RV-161RF

24 VDC

PC Pin

-25 °C

80 C

0.39 in

9.9 mm

5000 Steps

Flush, Recessed

Hexadecimal

0.1 in

Full

2.54 mm

0.386 "

9.8 mm

25 mA

Rotary for Tool

Sealed

Through Hole, Right Angle

Part	Voltage Rating	Termination Style	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board	Height Above Board	Electrical Life	Actuator Level	Circuit	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Current Rating (Amps)	Actuator Type	Features	Mounting Type	Number of Positions	Height Above Board [z]	Height Above Board [z]
Omron Electronics Inc-EMC Div A6R-101RF	24 VDC	PC Pin	10	-25 °C	80 C	0.177 in	4.5 mm	5000 Steps	Flush, Recessed	BCD	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole
Omron Electronics Inc-EMC Div A6RS-161RF	24 VDC	Gull Wing		-25 °C	80 C	0.185 in	4.7 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool		Surface Mount	16
Omron Electronics Inc-EMC Div A6R-101RS	24 VDC	PC Pin	10	-25 °C	80 C			5000 Steps	Raised	BCD	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary with Shaft	Sealed	Through Hole		0.465 "	11.8 mm
Omron Electronics Inc-EMC Div A6R-162RF	24 VDC	PC Pin		-25 °C	80 C	0.177 in	4.5 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole	16
Omron Electronics Inc-EMC Div A6RS-162RF-P	24 VDC	Gull Wing		-25 °C	80 C	0.185 in	4.7 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool		Surface Mount	16
Omron Electronics Inc-EMC Div A6R-161RS	24 VDC	PC Pin		-25 °C	80 C			5000 Steps	Raised	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary with Shaft	Sealed	Through Hole	16	0.465 "	11.8 mm
Omron Electronics Inc-EMC Div A6RS-161RF-P	24 VDC	Gull Wing		-25 °C	80 C	0.185 in	4.7 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool		Surface Mount	16
Omron Electronics Inc-EMC Div A6RV-102RF	24 VDC	PC Pin	10	-25 °C	80 C	0.39 in	9.9 mm	5000 Steps	Flush, Recessed	BCD	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole, Right Angle
Omron Electronics Inc-EMC Div A6RV-162RF	24 VDC	PC Pin		-25 °C	80 C	0.39 in	9.9 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole, Right Angle	16
Omron Electronics Inc-EMC Div A6RV-161RF	24 VDC	PC Pin		-25 °C	80 C	0.39 in	9.9 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole, Right Angle	16

A6RV-161RS

Deep-Dive with AI

A6RV-161RS

Deep-Dive with AI

Pricing

Description

A6R Series

Documents

Datasheet

How to Read Date Codes

Technical Specifications

A6R Series
