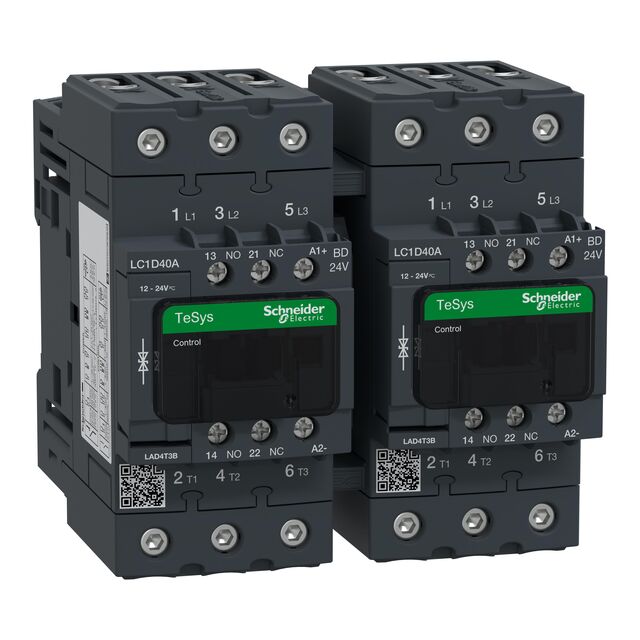

LC2D40ABD
ActiveSCHNEIDER ELECTRIC
TESYS3PEVLK REVERS CTR40A18,5KWA
LC2D40ABD
ActiveSCHNEIDER ELECTRIC
TESYS3PEVLK REVERS CTR40A18,5KWA
Description
General part information
LC2D40ABD
TESYS3PEVLK REVERS CTR40A18,5KWA
Technical Specifications
Parameters and characteristics for this part
| Specification | LC2D40ABD |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 40 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 V |
| Operate Time | 57.5 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 24 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Screw Terminal |
