B59115P1120A062
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 80V 70MA 3225
B59115P1120A062
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 80V 70MA 3225
Description
General part information
B59115P1120A062

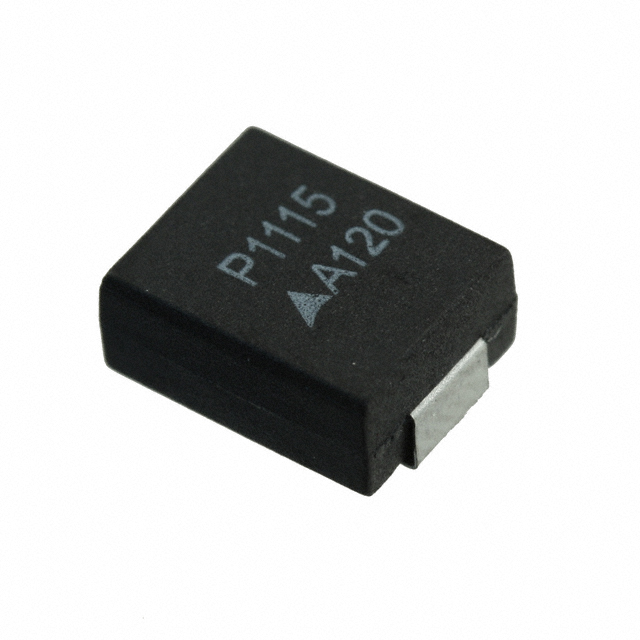

Ceramic PTC Resettable Fuse 80V 70 mA Ih Surface Mount 3225 (8063 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B59115P1120A062 |
|---|---|
| Current - Hold (Ih) (Max) | 70 mA |
| Current - Max | 700 mA |
| Current - Trip (It) | 145 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 3225 (8063 Metric) |
| Qualification | AEC-Q200 |
| Resistance - 25°C (Typ) | 55 Ohms |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.248 in |
| Thickness (Max) | 0.15 in |
| Type | Ceramic |
| Voltage - Max | 80 Vpk |
