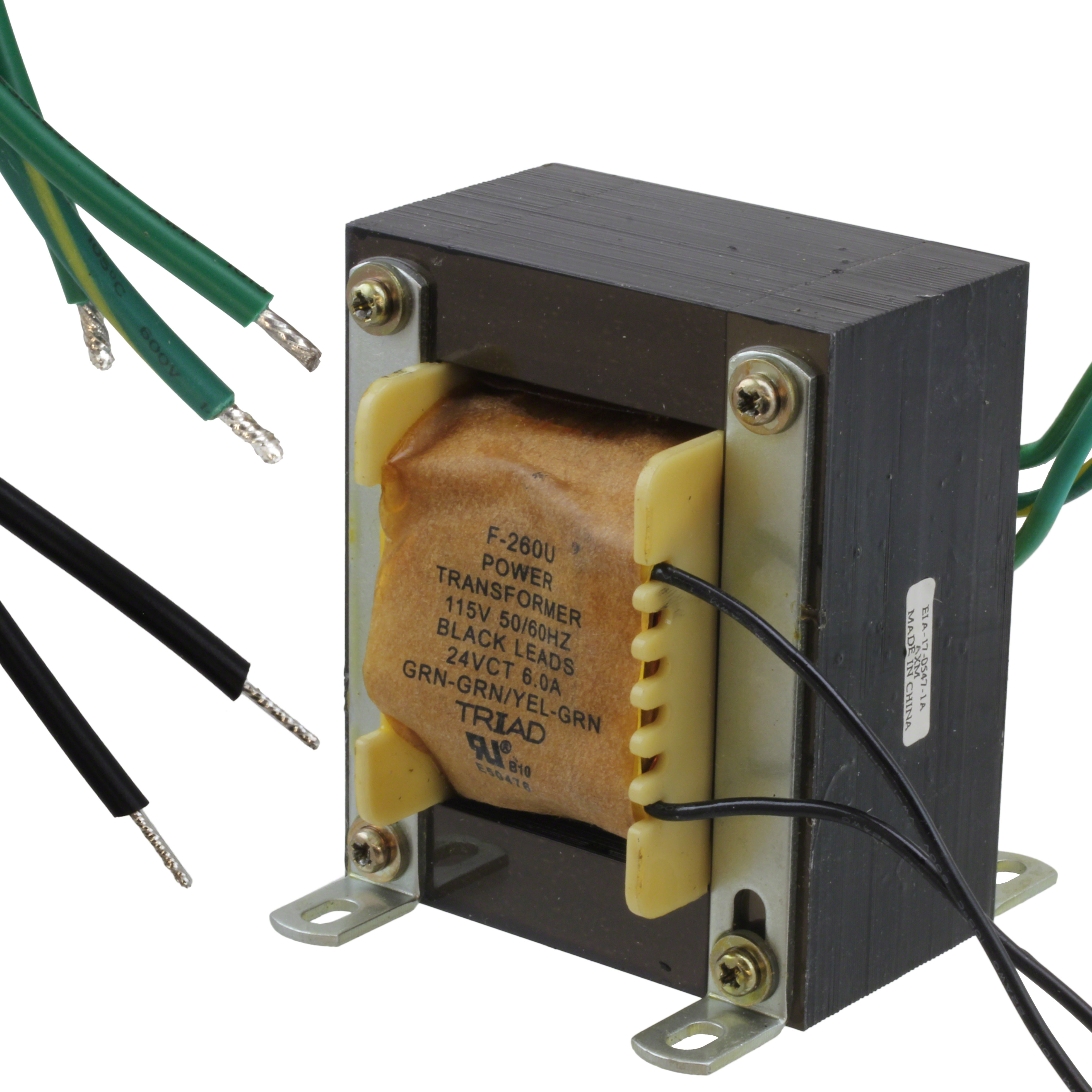

F-260U
ActiveTriad Magnetics
PWR XFMR LAMINATED 144VA CHAS MT
F-260U
ActiveTriad Magnetics
PWR XFMR LAMINATED 144VA CHAS MT
Description
General part information
F-260U
PWR XFMR LAMINATED 144VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | F-260U |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 6 A |
| Height - Seated (Max) | 3.75 in |
| Mounting Type | Chassis Mount |
| Power - Max | 144 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 79.38 mm |
| Size / Dimension Width | 88.9 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 24 V |
| Weight | 6.4 lbs |
