Q-0201Z00010.5M

Active

Amphenol Custom Cable

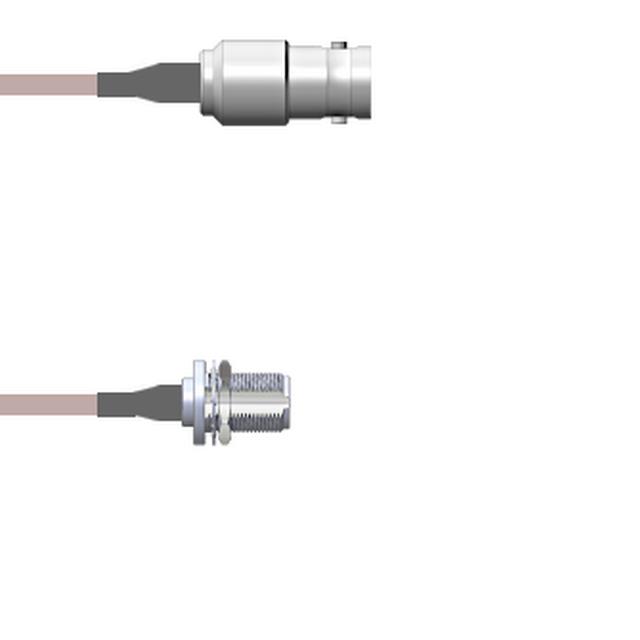

CBL ASSY BNC-NTYPE JK-JK 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0201Z00010.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JK-JK 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0201Z00010.5M	Q-0201Z0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	N-Type Jack	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount	Panel Mount
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	50 cm	1 - 1200 mm
Length	19.69 "	3 - 118.1 "
Length	-	9.843 "
Length	-	250 - 457.2 mm
Length	-	457.2 mm
Length	-	3.3 - 9.8 ft
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to N-Type	BNC to N-Type

Q-0201Z0 Series

CBL ASSY BNC-NTYPE JACK-JACK 12"

Part	Frequency - Max [Max]	2nd Connector Mounting Type	Length	Length	Color	Style	2nd Connector Mounting Feature	2nd Contact Gender	1st Contact Gender	2nd Connector	1st Connector	Features	Cable Type	1st Connector Mounting Type	Overall Impedance	Length [x]	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-0201Z0001012i	4 GHz	Panel Mount	12 "	304.8 mm	Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0201Z0001.25M	4 GHz	Panel Mount			Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-0201Z0001018i	4 GHz	Panel Mount			Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0201Z0001001M	4 GHz	Panel Mount	39.4 in	1 m	Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms				3.3 ft
Amphenol Custom Cable Q-0201Z0001003i	4 GHz	Panel Mount	3 in	76.2 mm	Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0201Z00011.5M	4 GHz	Panel Mount	59.1 in	1.5 m	Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms				4.9 ft
Amphenol Custom Cable Q-0201Z0001084i	4 GHz	Panel Mount	84 in	2.1 m	Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms				7 ft
Amphenol Custom Cable Q-0201Z0001.75M	4 GHz	Panel Mount	29.53 "	750 mm	Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0201Z0001002M	4 GHz	Panel Mount	78.7 in	2 m	Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms				6.6 ft
Amphenol Custom Cable Q-0201Z0001048i	4 GHz	Panel Mount	48 in	1200 mm	Copper	BNC to N-Type	Bulkhead - Front Side Nut	Female	Female	N-Type Jack	BNC Jack	Shielded	RG-178	Free Hanging (In-Line)	50 Ohms				4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.87
		25	$ 74.41
		50	$ 72.95
		100	$ 71.48
		250	$ 70.02

Description

General part information

Q-0201Z0 Series

Cable Assembly Coaxial BNC to N-Type RG-178 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
