MDGLFS
ActiveLITTELFUSE
SWITCH PUSH SPST-NO 0.05A 100V
MDGLFS
ActiveLITTELFUSE
SWITCH PUSH SPST-NO 0.05A 100V
Description
General part information
MDGLFS

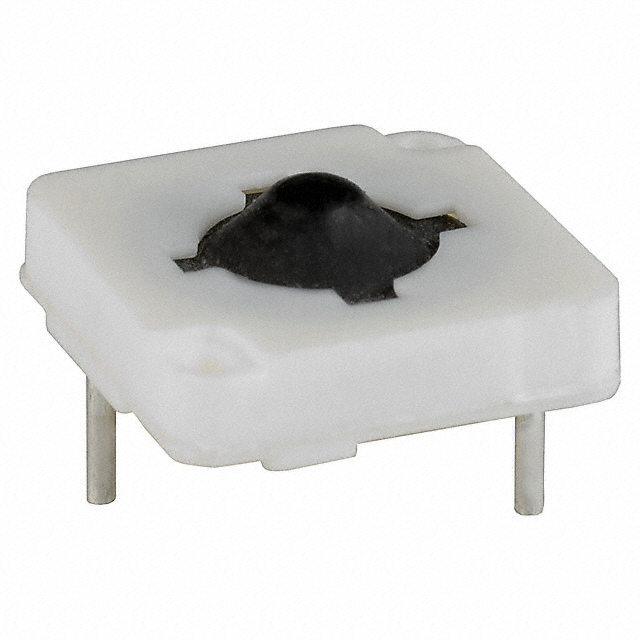

Pushbutton Switch SPST-NO Keyswitch Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | MDGLFS |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rubber, Button, Round |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating | 50 mA |
| Electrical Life (Cycles) | 5000000 Cycles |
| Features | Tactile Feedback |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Keyswitch |
| Voltage Rating - AC | 100 V |
| Voltage Rating - DC | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
