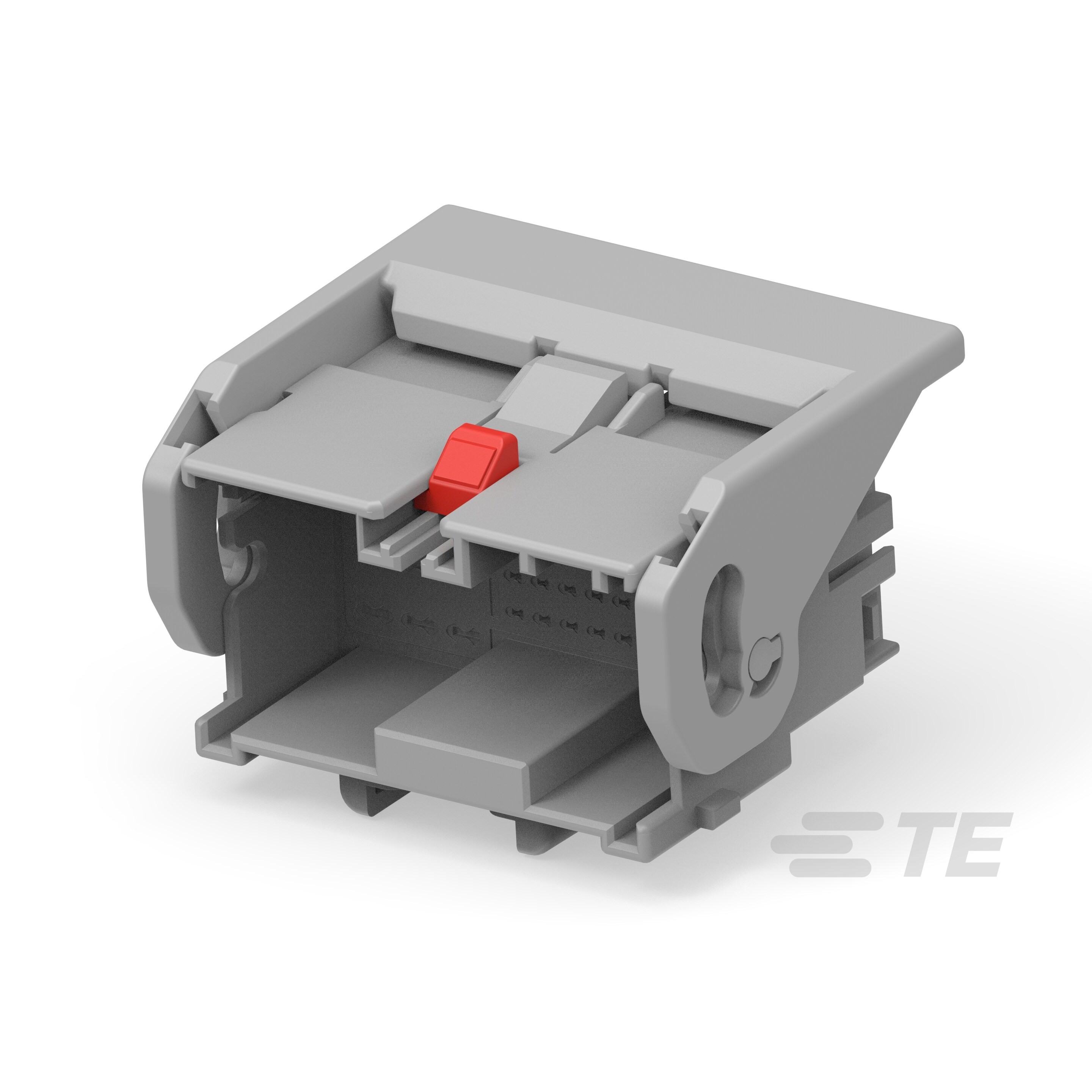

1-2109455-3
ActiveTE Connectivity AMP Connectors
050/110 48P CAP ASSY CODE B
1-2109455-3
ActiveTE Connectivity AMP Connectors
050/110 48P CAP ASSY CODE B
Description
General part information
1-2109455-3
48 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3 mm / 5 mm [.11 in / .19 in] Centerline, Gray, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2109455-3 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Lever Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 48 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.118 in |
| Row Spacing | 0.146 in |
