2109206-1
ActiveTE Connectivity AMP Connectors

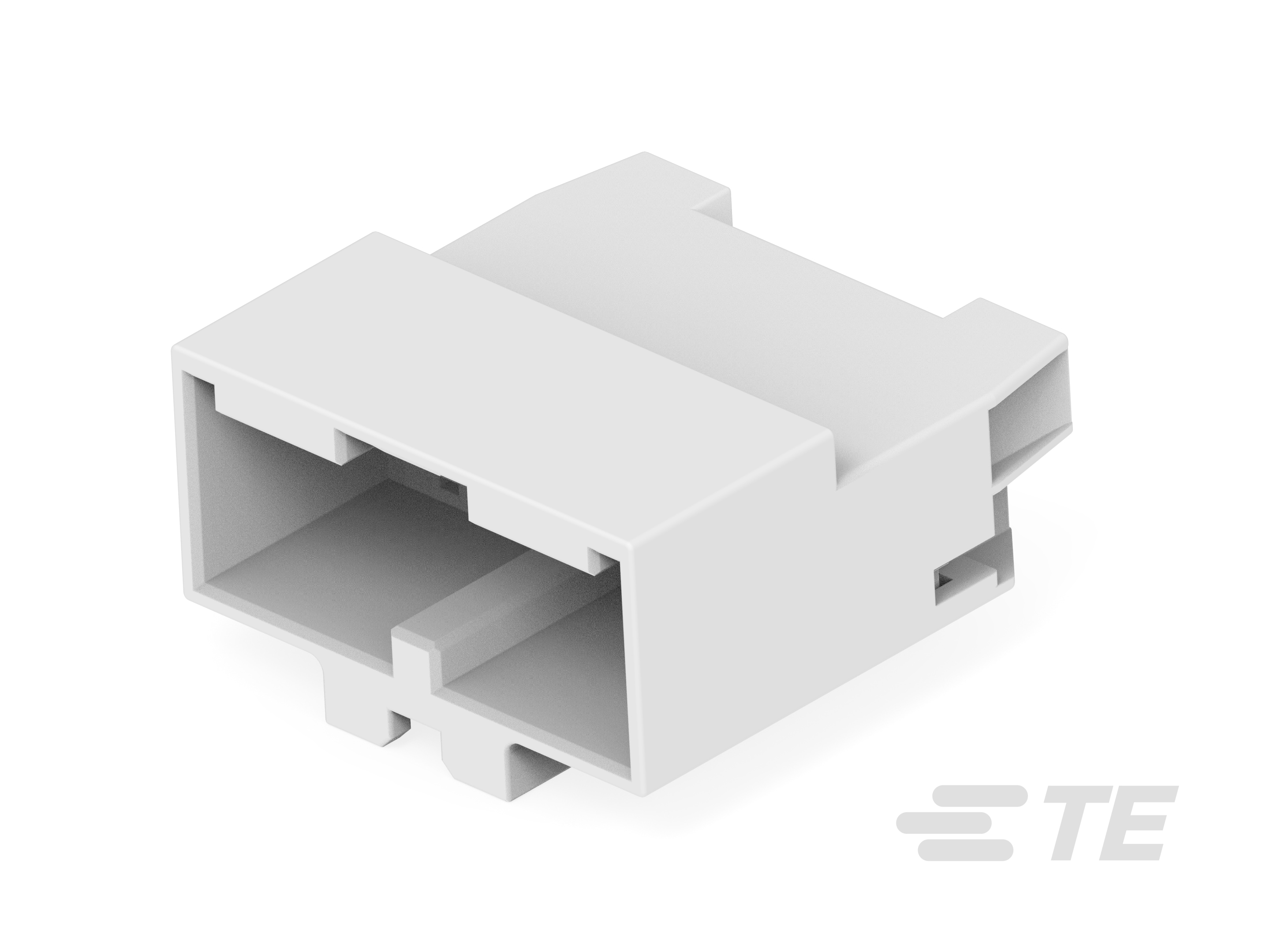

025/060/110 HYB 18P CAP ASSY
2109206-1
ActiveTE Connectivity AMP Connectors
025/060/110 HYB 18P CAP ASSY
Description
General part information
2109206-1
18 Position Housing, Housing for Male Terminals, Wire-to-Wire, 2.2 mm / 4 mm [.086 in / .157 in] Centerline, Natural, Wire & Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 2109206-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 18 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.087 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
