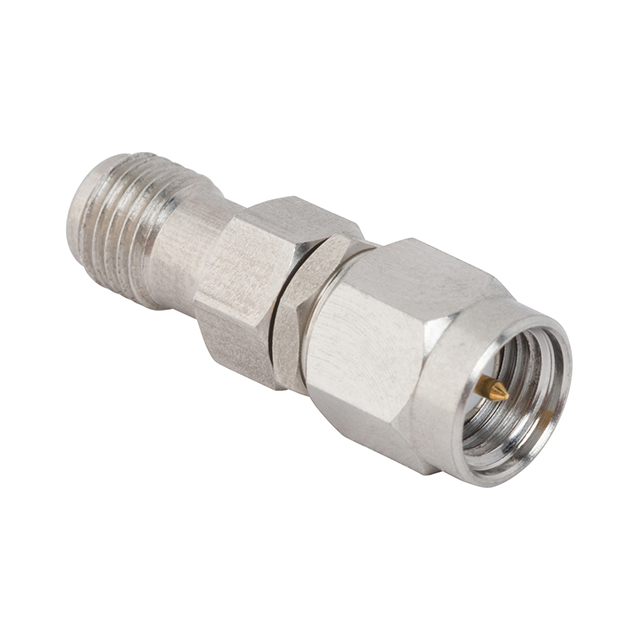

AD-292JSMAP-1
ActiveMcGill Microwave Systems
2.92 MM JACK TO SMA PLUG ADAPTER
AD-292JSMAP-1
ActiveMcGill Microwave Systems
2.92 MM JACK TO SMA PLUG ADAPTER
Description
General part information
AD-292JSMAP-1
2.92 MM JACK TO SMA PLUG ADAPTER
Technical Specifications
Parameters and characteristics for this part
| Specification | AD-292JSMAP-1 |
|---|---|
| Adapter Series | SMA |
| Adapter Series Size | 2.92 mm |
| Adapter Type | Plug to Jack |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, SMA Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | RPC-2.92 Jack |
| Fastening Type | Threaded |
| Frequency - Max | 26.5 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
