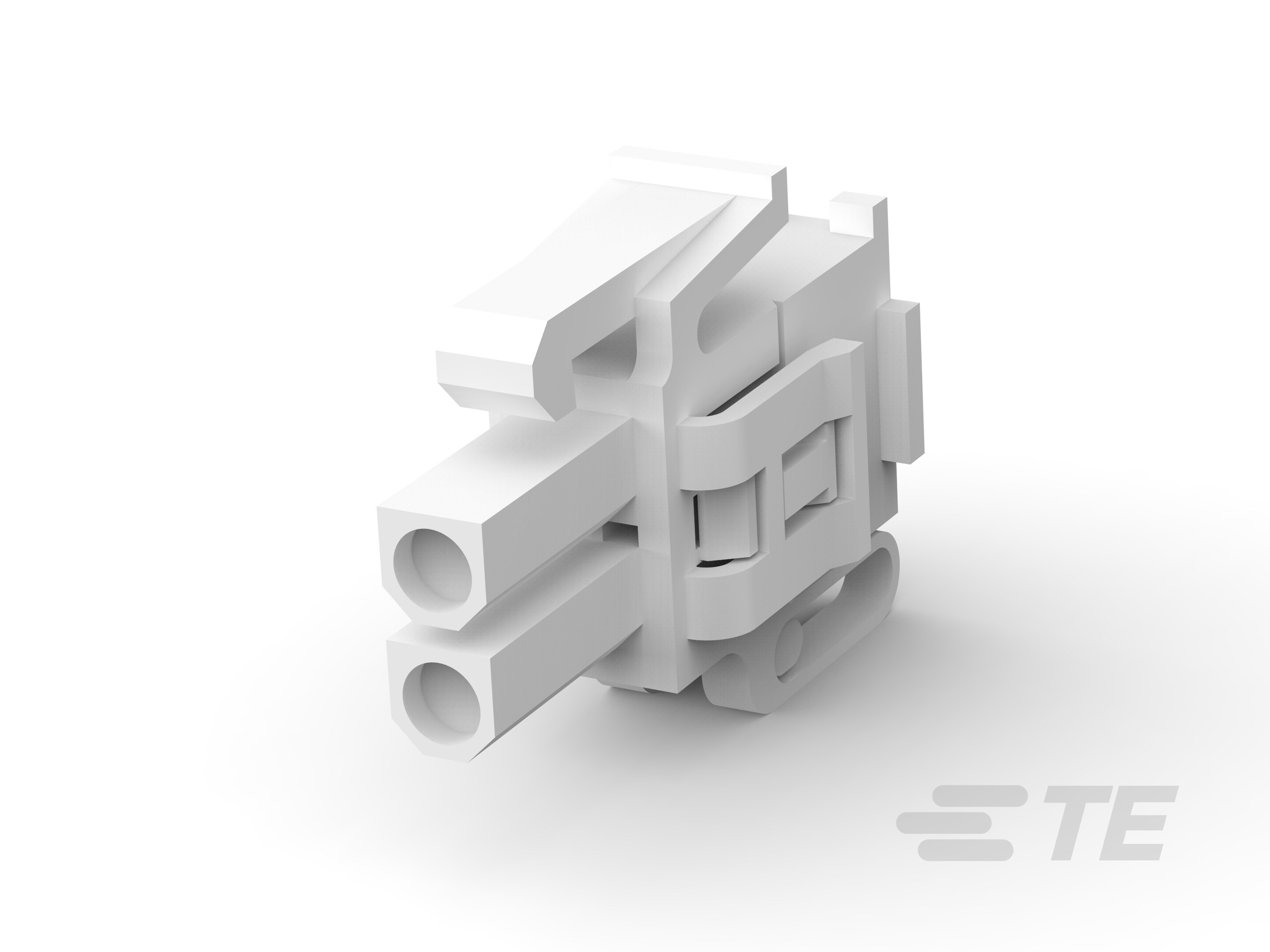

Specification	794237-1

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male or Female, Male, Female
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	2
Row Spacing	0.163 in

MATE-N-LOK Series
