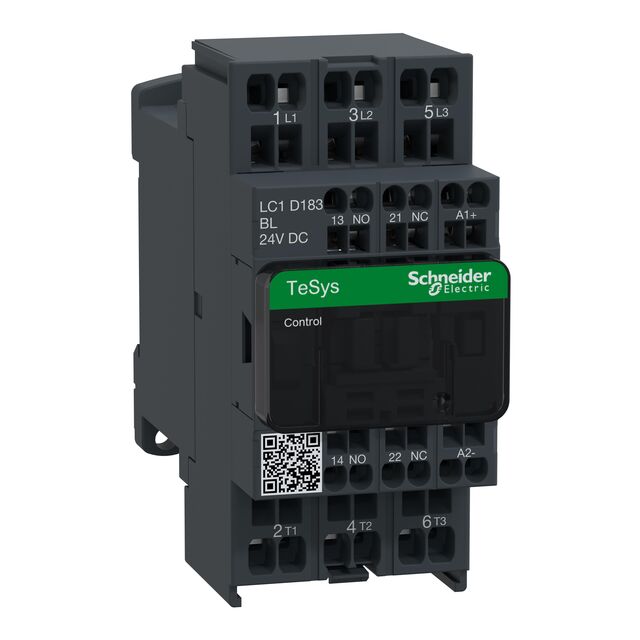

LC1D183BL
ActiveSCHNEIDER ELECTRIC
CONTACTOR, LC1D, 18 A, DIN RAIL, PANEL, 690 VAC, 3PST-NO, 3 POLE, 10 KW
LC1D183BL
ActiveSCHNEIDER ELECTRIC
CONTACTOR, LC1D, 18 A, DIN RAIL, PANEL, 690 VAC, 3PST-NO, 3 POLE, 10 KW
Description
General part information
LC1D183BL
CONTACTOR, LC1D, 18 A, DIN RAIL, PANEL, 690 VAC, 3PST-NO, 3 POLE, 10 KW
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D183BL |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 18 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 19.2 V |
| Must Release Voltage | 2.4 V |
| Operate Time | 88.55 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 30 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Spring Terminal |
