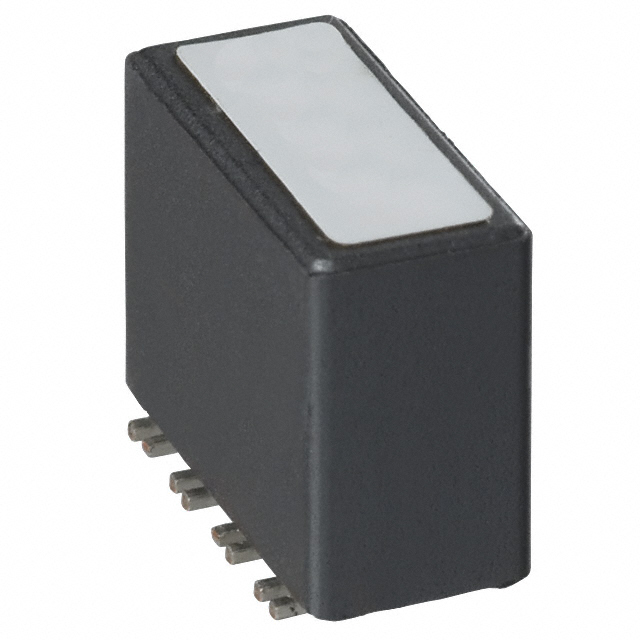

CM5022R201R-10
ActiveLaird Technologies EMI
CMC 5A 8LN 200 OHM SMD
CM5022R201R-10
ActiveLaird Technologies EMI
CMC 5A 8LN 200 OHM SMD
Description
General part information
CM5022R201R-10
8 Line Common Mode Choke Surface Mount 200 Ohms @ 100 MHz 5A DCR 20mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM5022R201R-10 |
|---|---|
| Current Rating (Max) | 5 A |
| DC Resistance (DCR) (Max) | 20 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.406 in |
| Impedance | 200 Ohms |
| Lead Count | 16 |
| Mounting Type | Surface Mount |
| Number of Lines | 8 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical |
| Package Leads | 16, 16 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.495 in |
| Size / Dimension Width | 0.265 in |
