2391423-9
ActiveTE Connectivity AMP Connectors

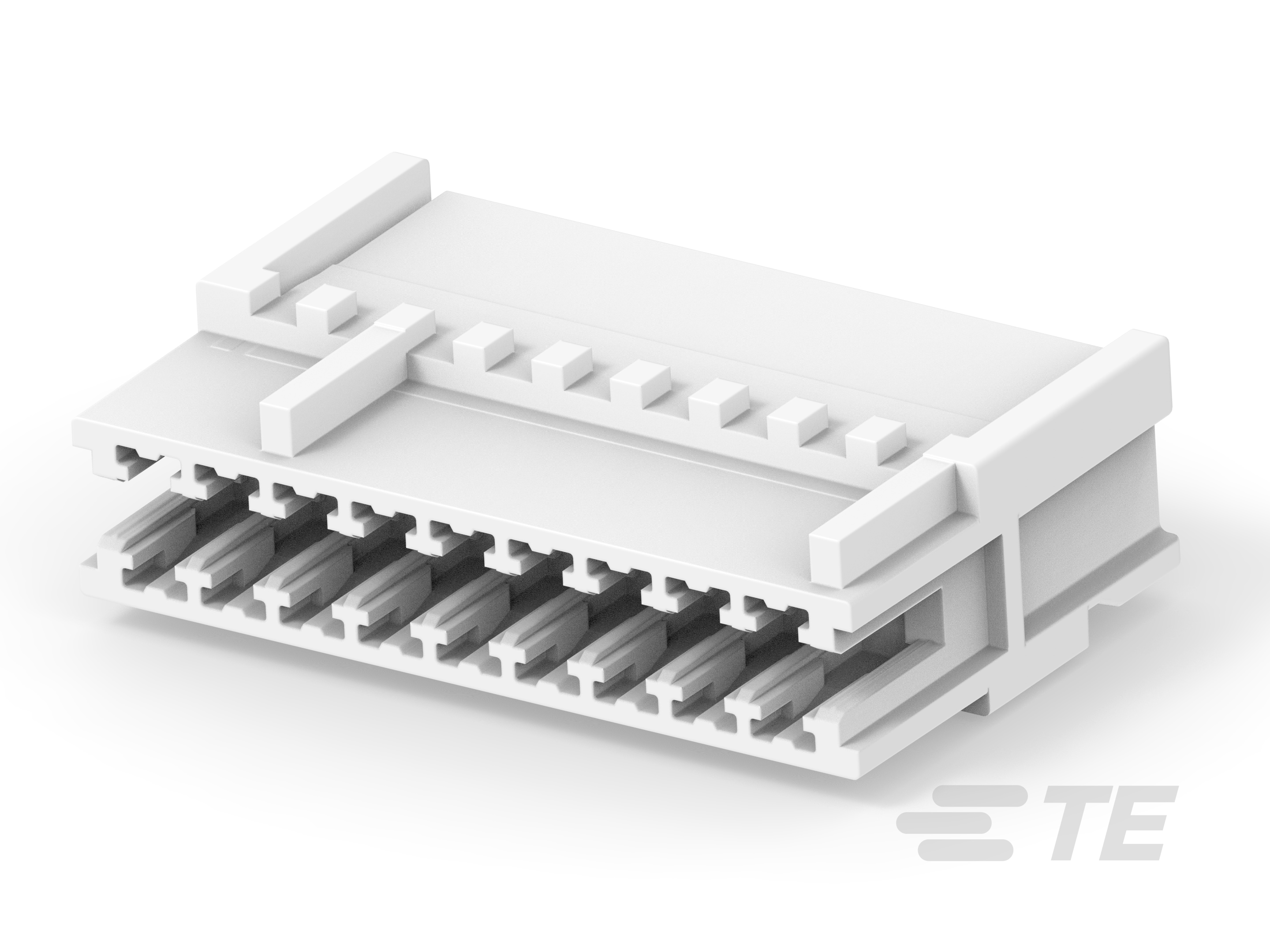

9P RAST 2.5 STANDARD TIMER
2391423-9
ActiveTE Connectivity AMP Connectors
9P RAST 2.5 STANDARD TIMER
Description
General part information
Standard Timer Series
Wire-to-Board, 9 Position, 2.5 mm [.098 in] Centerline, Crimp, 1 Row, Natural, PA 66 GF, Standard Timer, Standard Edge Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2391423-9 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.098 in |
