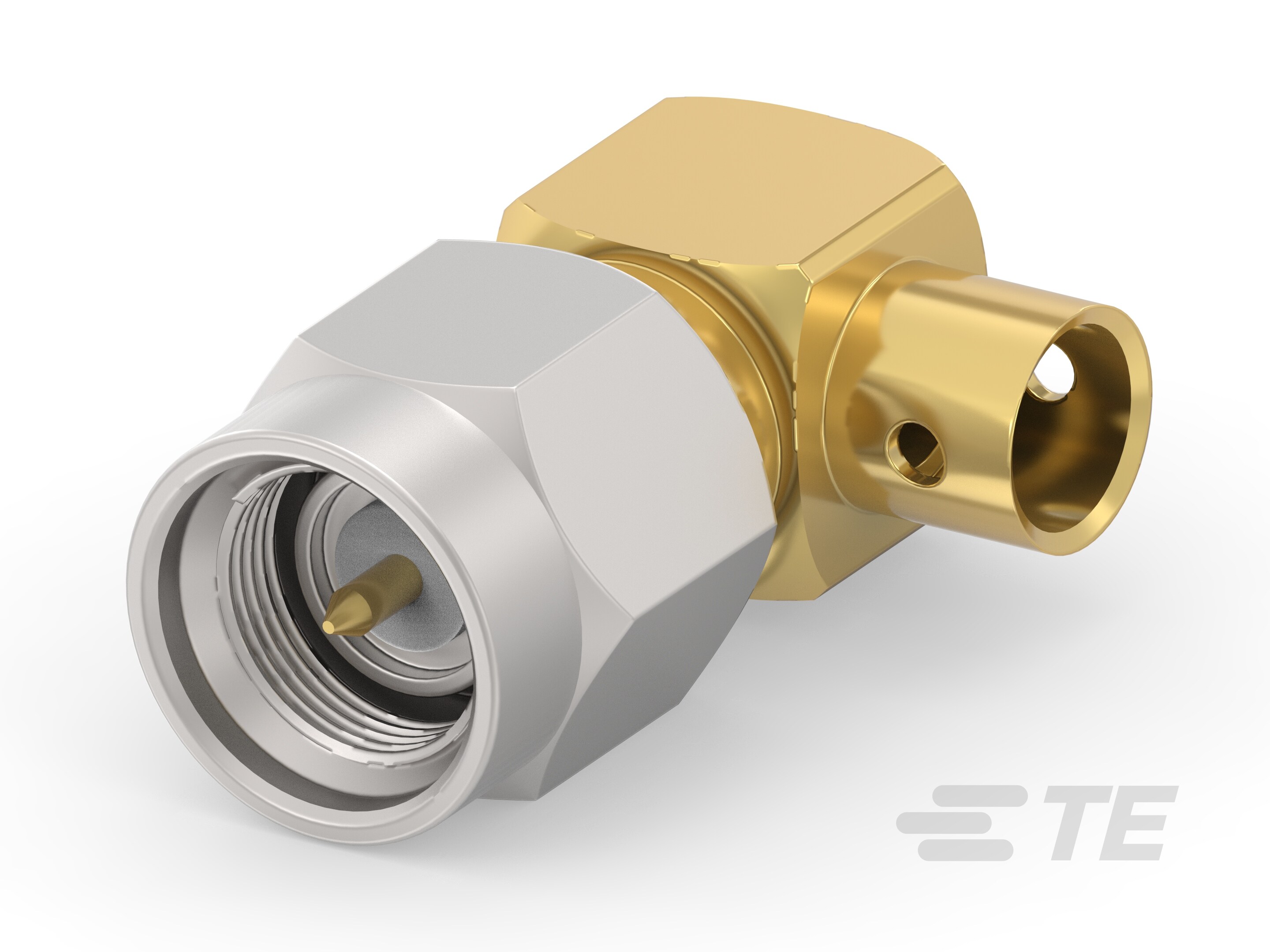

SMA Plug RA Direct Solder .141 S/R 18GHz-2486512-1

2486512-1

Active
TE Connectivity AMP Connectors

RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE PLUG, SOLDER, 50 OHM, 0.141" SEMI RIGID, BRASS

Find alt
SMA Plug RA Direct Solder .141 S/R 18GHz-2486512-1

2486512-1

Active
TE Connectivity AMP Connectors

RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE PLUG, SOLDER, 50 OHM, 0.141" SEMI RIGID, BRASS

Find alt

Description

General part information

2486512-1

SMA Connector, Plug, 50 ohm, Threaded, 0 – 18 GHz, Cable-to-Cable, 1 Position, Wire & Cable, Cable Mount (Free-Hanging), -65 – 125 °C [-85 – 257 °F]

Technical Specifications

Parameters and characteristics for this part

Specification2486512-1
Center Contact MaterialBrass
Connector StyleSMA
Connector TypeMale Pin, Plug
Contact TerminationSolder
Fastening TypeThreaded
Frequency - Max18 GHz
Housing ColorGold, Silver
Impedance50 Ohm
Mounting TypeRight Angle, Free Hanging (In-Line)
Number of Ports1
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
